Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Loosen the mounting bolt after remove the plug hall (A). And then push the outside handle (B) in the direction of arrow as illustration below.
    G16774463Courtesy of HYUNDAI MOTOR AMERICA

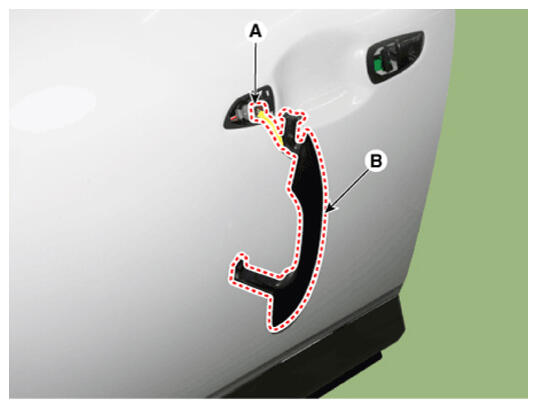

  3. Disconnect the outside handle connector (A) and then remove the door outside handle (B).
G16774464Courtesy of HYUNDAI MOTOR AMERICA
