Integrated LED Control Unit (ILCU)

Courtesy of HYUNDAI MOTOR AMERICA

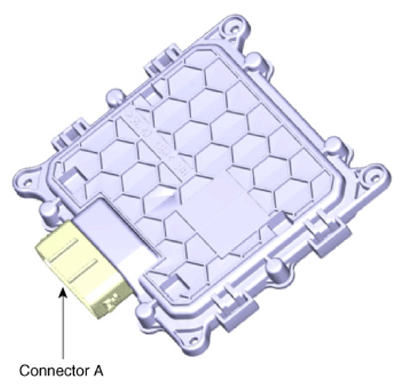

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground
	2	-
	3	Height sensor signal
	4	Side repeater (+)
	5	-
	6	-
	7	Side repeater (-)
	3	Height sensor (-)
	9	-
	10	Battery (+)
	11	-
	12	-
	13	Height sensor power
	14	-
	15	CAN Low
	16	CAN High
	17	-
	18	IGN 2
