Home >> Genesis >> 2024 >> G70 2.5T, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System - 2.5L >> Components And Components Location >> Components

Components And Components Location: Components

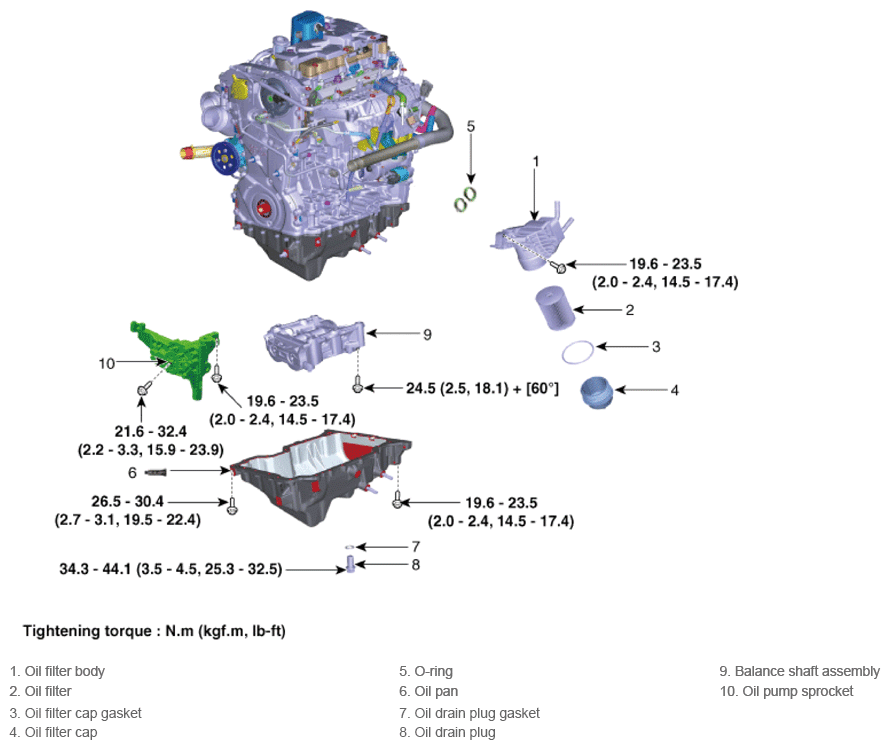

Fig 1: Lubrication System Components Location With Torque Specifications

G16829661

Courtesy of HYUNDAI MOTOR AMERICA
