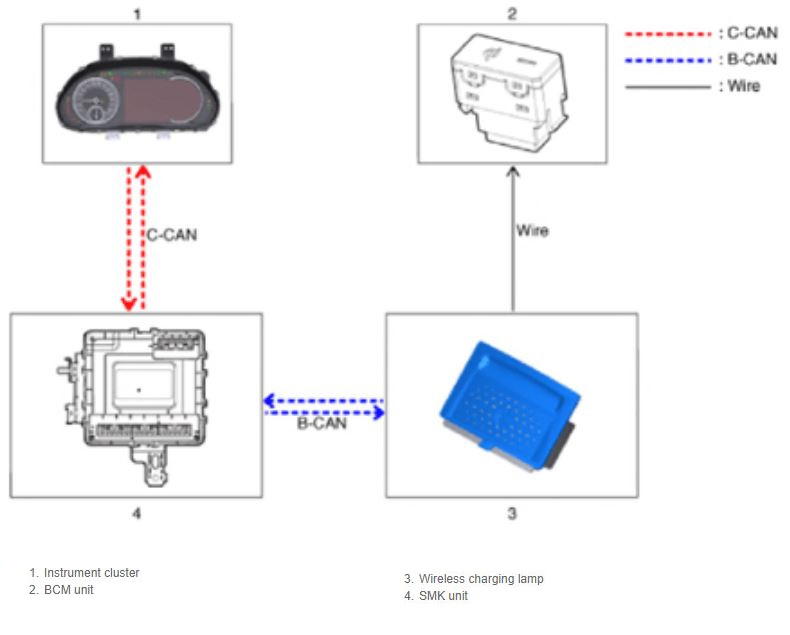

System Configuration Diagram

G00620462Courtesy of HYUNDAI MOTOR AMERICA
  1. Alerts about contact with mobile phone
  2. Determines contact with mobile phone
  3. Displays the charging status
  4. Stops charging during the activation of LF
