Diagnostic Flowchart

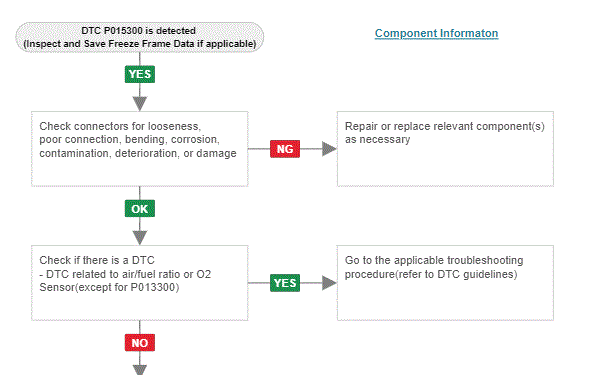

Fig 1: 1 Of 3
G14729746Courtesy of HYUNDAI MOTOR AMERICA

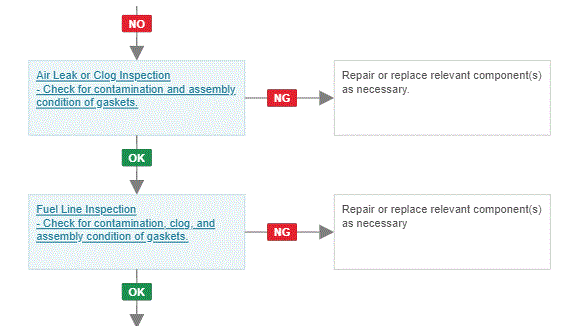

Fig 2: 2 Of 3
G00625873Courtesy of HYUNDAI MOTOR AMERICA

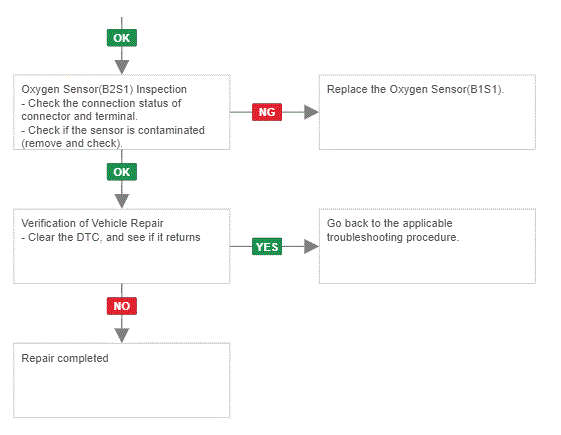

Fig 3: 3 Of 3
G00625877Courtesy of HYUNDAI MOTOR AMERICA
