Removal And Installation: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guard.

    (Refer to Body - "FRONT WHEEL GUARD ")

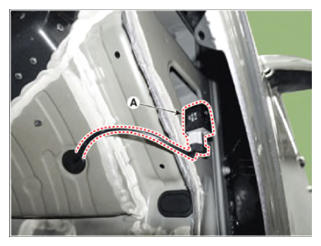

  3. Disconnect the connectors, and then remove the buzzer (A).
    G14754729Courtesy of HYUNDAI MOTOR AMERICA
