Repair Procedures: Replacement: Notes
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

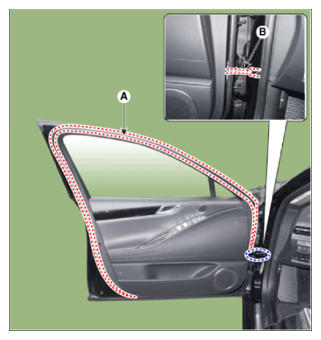

- Loosen the front door checker (B) mounting bolt.
- Detach the clips (B), remove the front door side weatherstrip (A).
Tightening torque:
16.7-21.6 N.m (1.7 - 2.2 kgf.m, 12.3 - 15.9 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
