Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

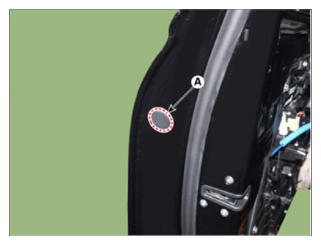

Remove the plug hole (A).

Courtesy of HYUNDAI MOTOR AMERICA

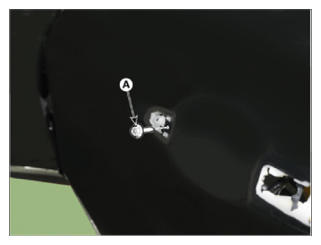

Loosen the front door outside handle base mounting bolt (A).

Courtesy of HYUNDAI MOTOR AMERICA

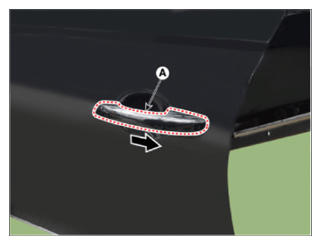

Remove the front door outside handle (A), by sliding it forward.

Courtesy of HYUNDAI MOTOR AMERICA

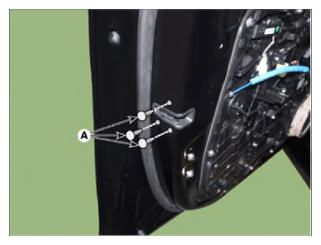

Remove the front door lock assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

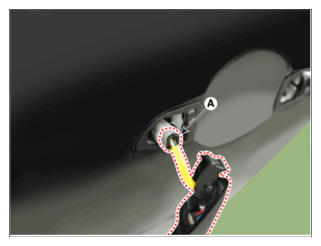

Detach the front door outside handle connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

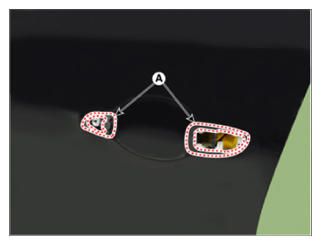

Remove the front door outside handle pad (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the front door outside handle base mounting screw (A).

Courtesy of HYUNDAI MOTOR AMERICA

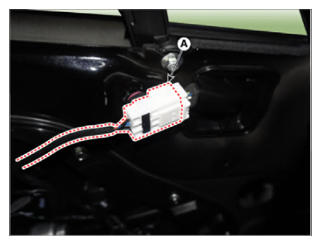

Detach the outside rear view mirror connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the front door module base mounting screw (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

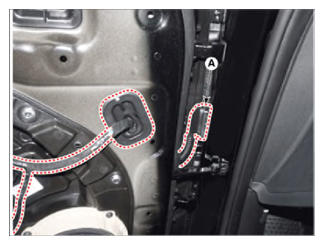

Remove the front door main wire connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

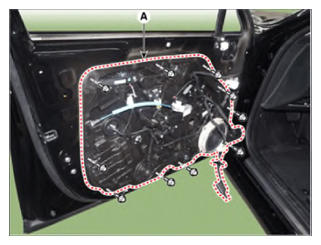

Loosen the front door module mounting bolt, remove the front door module (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
