Knee Airbag (Kab) Module: Removal
- Disconnect The Battery Negative (-) Terminal.
- Remove The Crash Pad Under Cover [Lh].
(Refer To Body (Interior/Exterior/Electrical) - "Crash Pad Under Cover ")

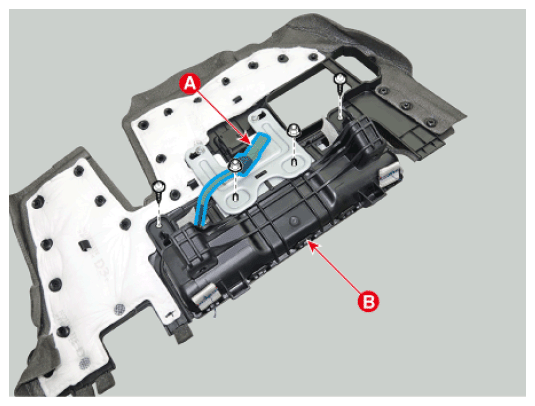

- Separate The Knee Airbag Module Connectors (A).
Tightening Torque:
5.9 - 7.8 N.M (0.6 - 0.8 Kgf.M, 4.3 - 5.8 Lb-Ft)
