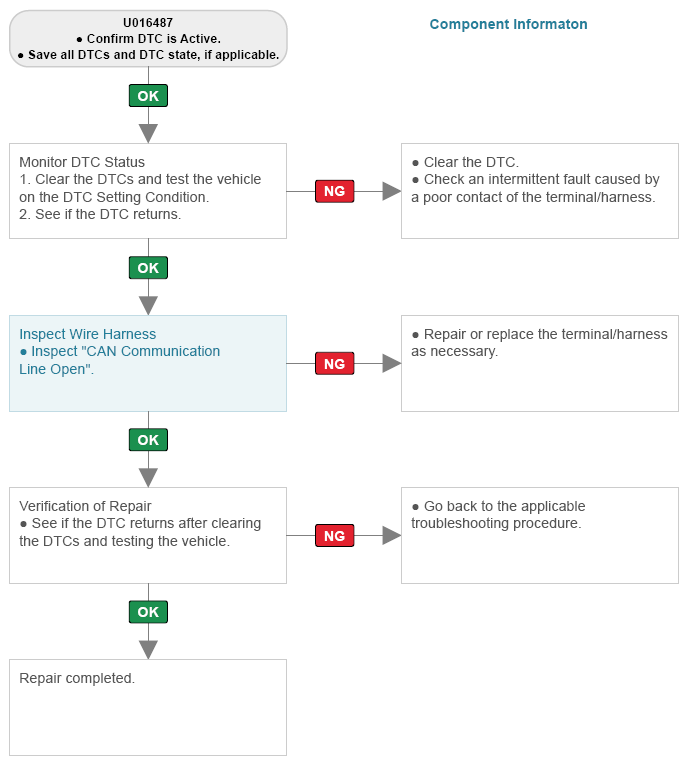

Home >> Genesis >> 2023 >> Electrified GV70 Advanced >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Testing and Diagnosis >> Vehicle Control System Diagnosis >> DTC U0164-87: Lost Communication With HVAC Control Module >> Troubleshooting >> Diagnostic Flowchart
