Active Hood Sensor & Unit Assembly: Removal
- Disconnect the negative (-) battery terminal.
- Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

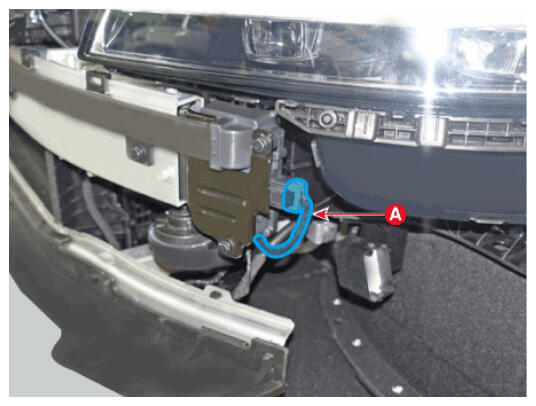

- Disconnect the active hood unit connector (A).

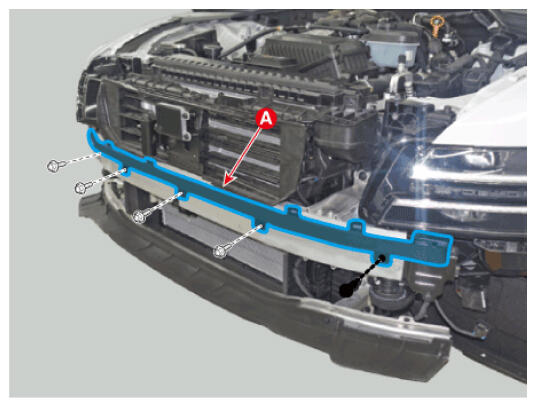

- Loosen the mounting bolts, remove the active hood unit & sensor assembly (A).
