Home >> Genesis >> 2023 >> Electrified G80 >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Cooling Systems >> Motor Cooling System >> 3 Way Valve >> Components And Components Location >> Components

Components And Components Location: Components

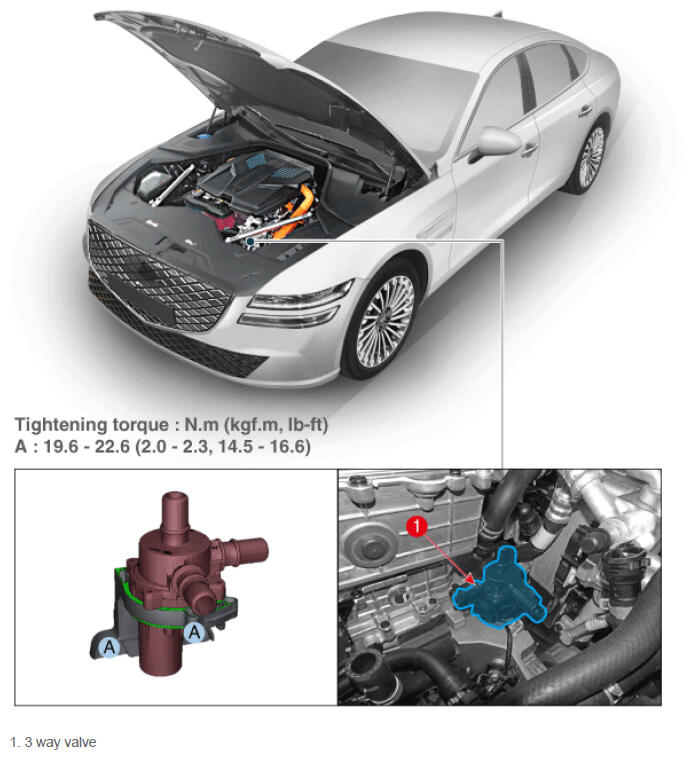

Fig 1: 3 Way Valve Component Location With Torque Specifications

G16878106

Courtesy of HYUNDAI MOTOR AMERICA
