Components And Components Location: Components

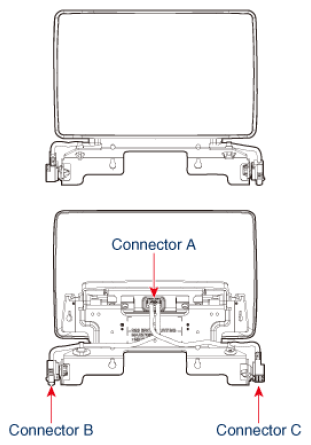

G16872539Courtesy of HYUNDAI MOTOR AMERICA
View
G16872540Courtesy of HYUNDAI MOTOR AMERICA
NO Connector A
1 Rear Monitor Power
2 -
3 -
4 Rear Monitor Ground
5 Rear Monitor Video
View
G16872541Courtesy of HYUNDAI MOTOR AMERICA
NO Connector B
1 Ground
2 Rear Monitor Video
View
G16872542Courtesy of HYUNDAI MOTOR AMERICA
NO Connector C
1 Rear Monitor Power
2 -
3 -
4 Rear Monitor Ground
