Front Monitor: Removal
NOTE:
- Take care not to scratch the crash pad and related parts.
- When removing with the screwdriver or remover, wrap the protective tape on the tools.
- Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
- Disconnect the negative (-) battery terminal.

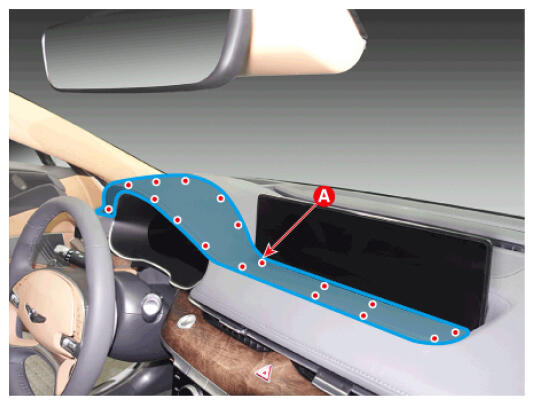

- Using a remover and remove the cluster fascia upper garnish (A).
Information

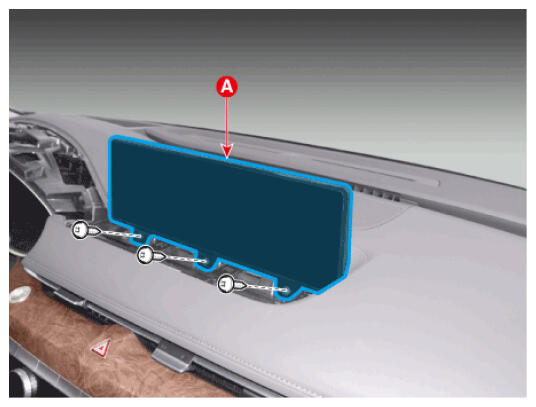

- Loosen the mounting screws and remove the front monitor (A).

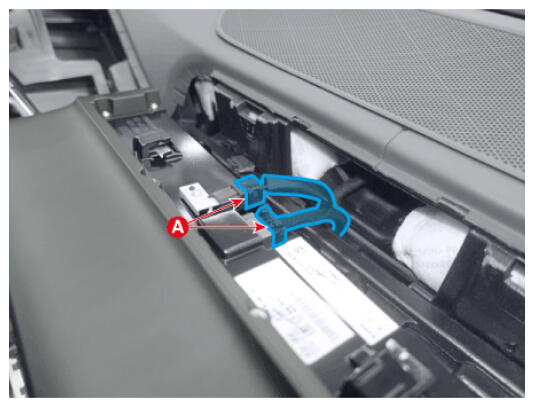

- Disconnect the front monitor connectors (A).
