Front Integrated Controller: Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the floor console assembly.

   (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

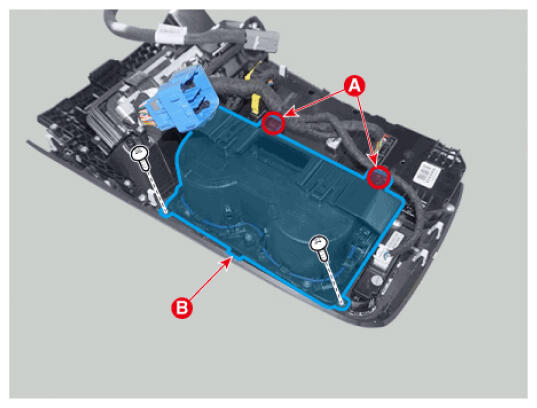

3. Loosen the mounting clips (A), screws and remove the cup holder (B).

   Courtesy of HYUNDAI MOTOR AMERICA

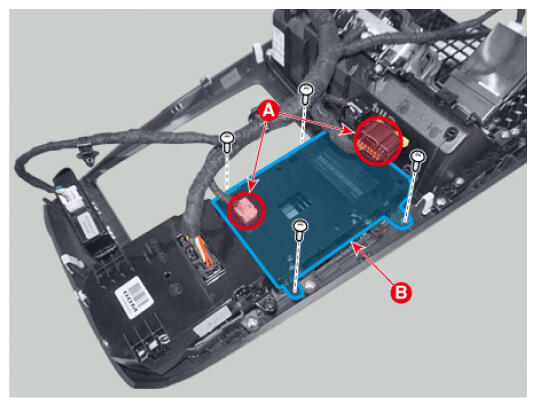

4. Disconnect the front integrated controller connector (A).
5. Loosen the mounting screws and remove the front integrated controller (B).

Courtesy of HYUNDAI MOTOR AMERICA
