Components And Components Locations: Component

Courtesy of HYUNDAI MOTOR AMERICA

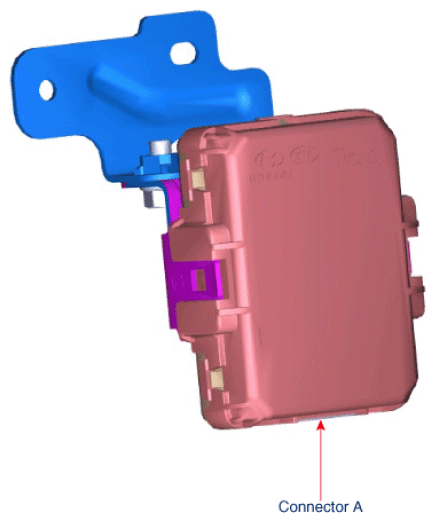

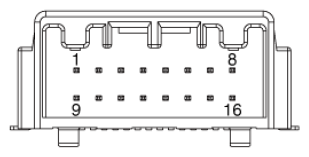

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground
	2	B_CAN (High)
	3	IAU_Local CAN (High)
	4	-
	5	-
	6	Reverse_LS
	7	IGN1
	8	Battery
	9	Ground
	10	B_CAN (Low)
	11	IAU_Local CAN (Low)
	12	BLE_LIN
	13	-
	14	Reverse_HS
	15	ACC
	16	IGN 2
