Home >> Genesis >> 2022 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 2.5L >> Valve Body >> Components And Components Location >> Components

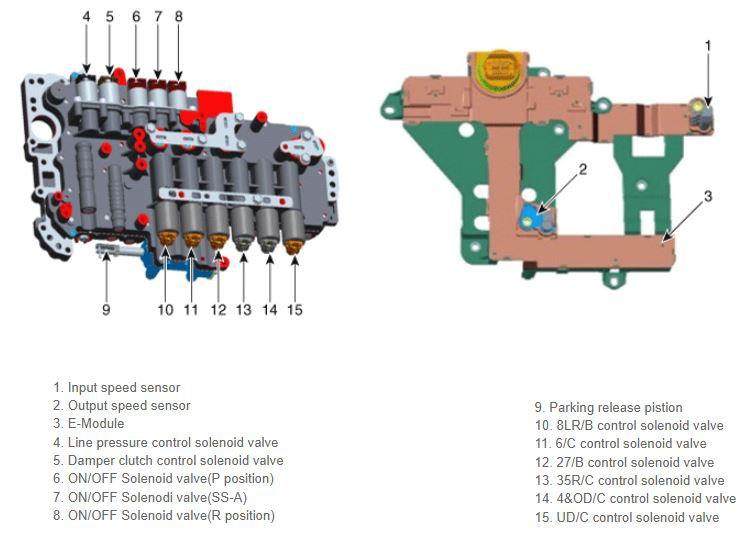

Components And Components Location: Components

G15547984

Courtesy of HYUNDAI MOTOR AMERICA
