Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
    WARNING:
    • Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

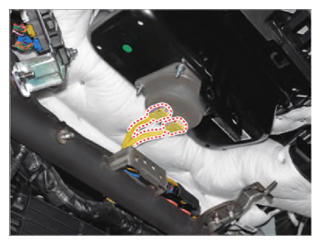

  3. Disconnect the passenger airbag connector.
    G14722833Courtesy of HYUNDAI MOTOR AMERICA

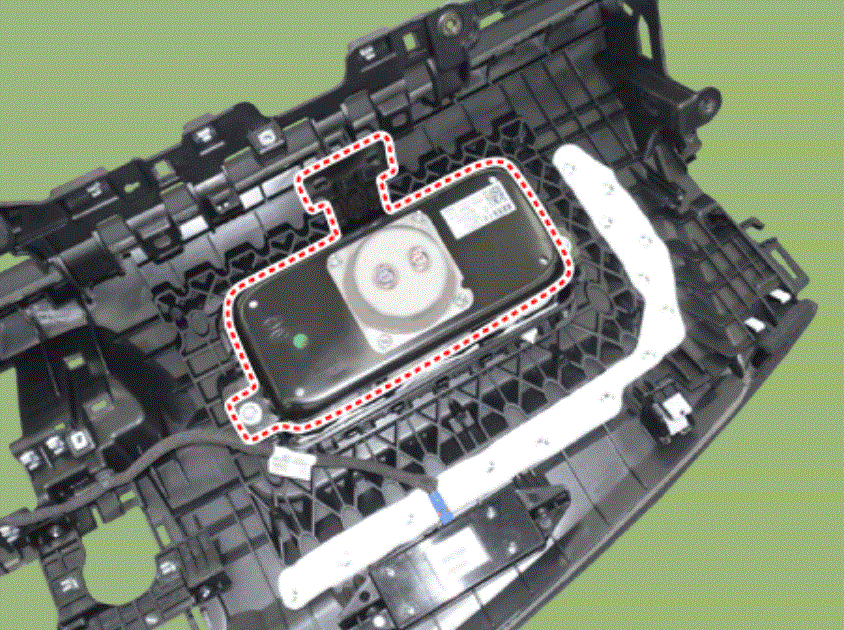

  4. Loosen the mounting bolt and then remove the PAB module.
    G14722834Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The removed airbag module should be stored in a clean, dry place with the airbag cushion up.
