Repair Procedures: Replacement
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When removing the fender, wrap protective tape around a screwdriver or remover not to damage components.
Information
- Removing or installing the hood requires an assistant.

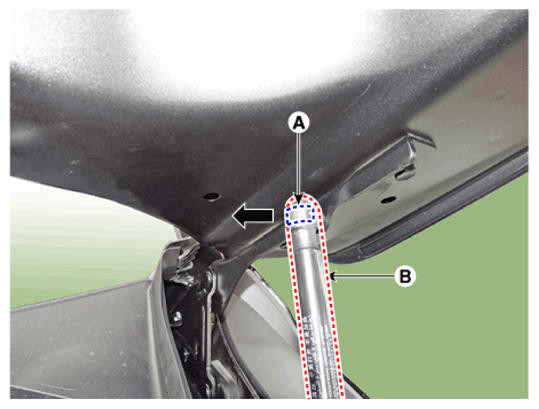

- Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B), and then remove the lifter from the bracket.

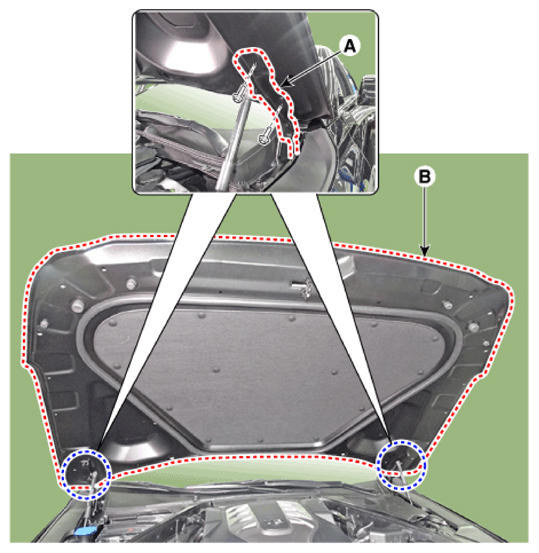

- After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening torque:
21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)
- To install, reverse the removal procedure.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood as necessary.
