In-Car Sensor (Front)

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

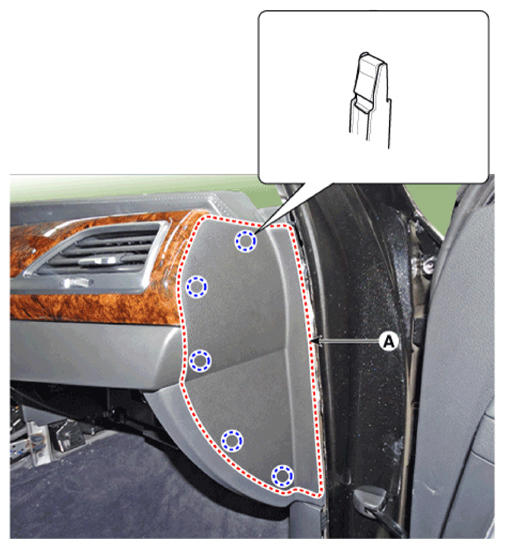

  2. Using a screwdriver or remover, remove the crash side cover (A).
    G14233864Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the glove box.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX ")

  4. Remove the crash pad lower panel.

    (Refer to Crash Pad Lower Panel )

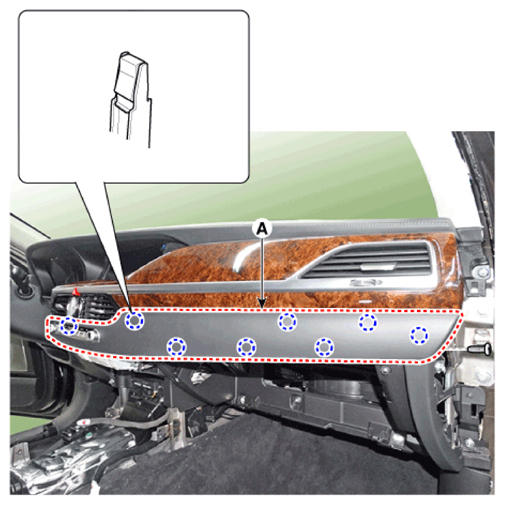

  5. Remove the crash pad center panel assembly [RH](A) after loosening the mounting screw.
    G14233865Courtesy of HYUNDAI MOTOR AMERICA

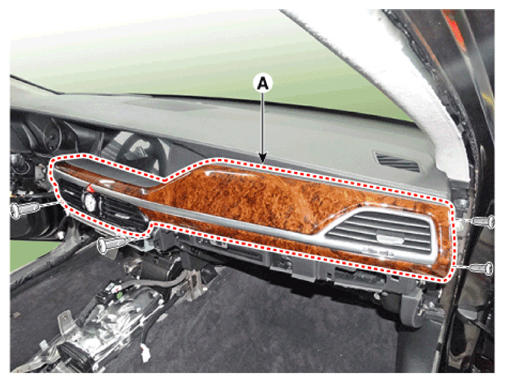

  6. Remove the crash pad center garnish assembly [RH](A) after loosening the mounting screw.
    G14233866Courtesy of HYUNDAI MOTOR AMERICA

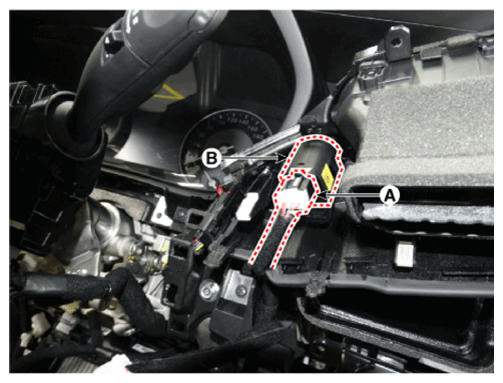

  7. Disconnect the connector (A) and then remove the in-car sensor (B) after loosening the mounting screws.
    G14233867Courtesy of HYUNDAI MOTOR AMERICA
  8. To install, reverse the removal procedure.
