Driver's Side

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

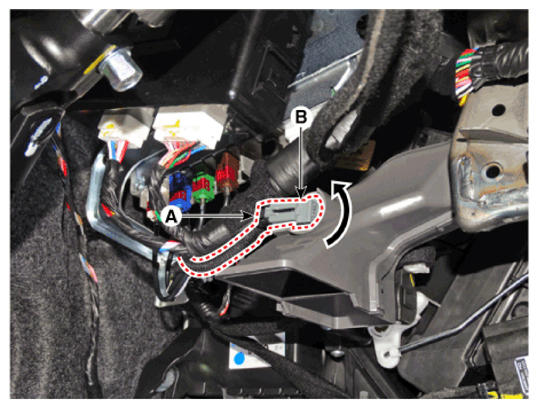

  3. Disconnect the duct sensor connector (A).
  4. Remove the duct sensor (B) by pulling it out after rotating it 90° in a counterclockwise direction.
    G14233899Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
