Connection Duct Sensor

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

  3. Disconnect the duct sensor connector (A).
  4. Remove the duct sensor (B) by pulling it out after rotating it 90° in a counterclockwise direction.

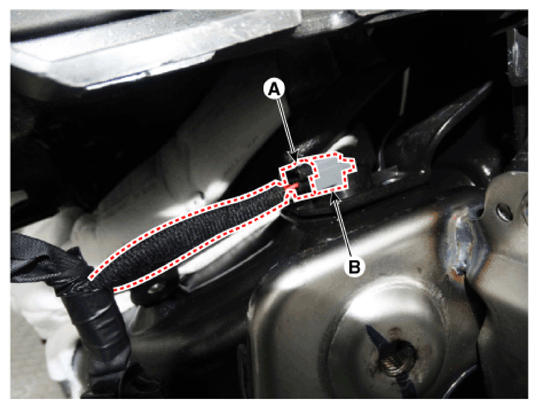

    [LH]

    G14233902Courtesy of HYUNDAI MOTOR AMERICA

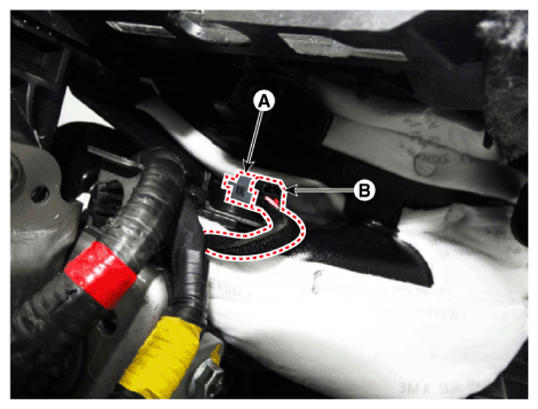

    [RH]

    G14233903Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
