Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER COVER ")

  5. Remove the hood latch assembly.

    (Refer to Body - "HOOD LATCH ASSEMBLY ")

  6. Remove the oil cooler.

    (Refer to Engine Mechanical System - "RADIATOR ")

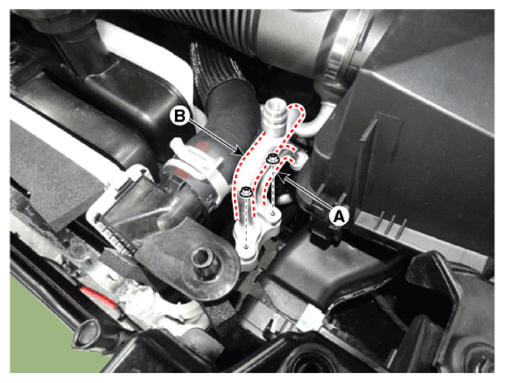

  7. Remove the 2 nuts, and then disconnect the discharge line (A) and liquid line (B) from the condenser.
    G14233842Courtesy of HYUNDAI MOTOR AMERICA

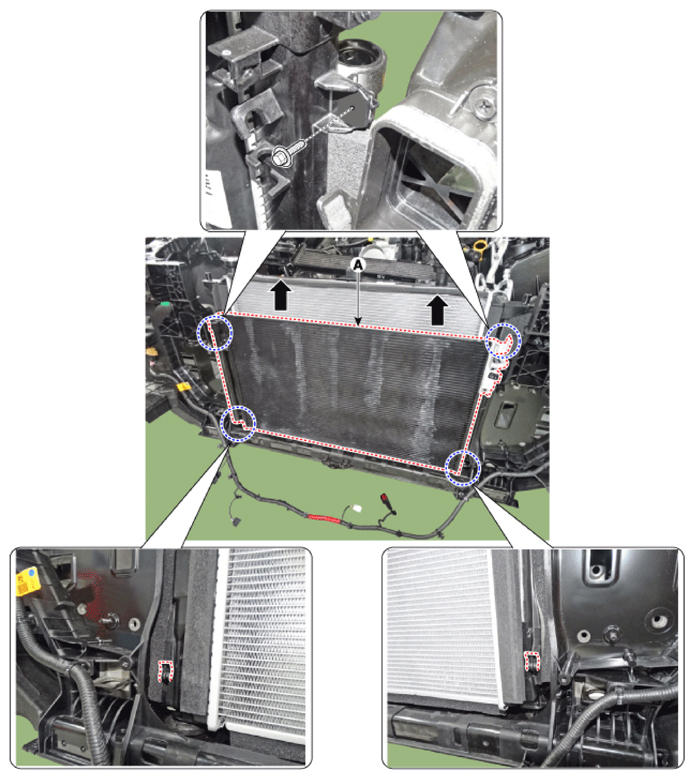

  8. Remove the condenser (A) from radiator.
    G14233843Courtesy of HYUNDAI MOTOR AMERICA
  9. To install, reverse the removal procedure.
NOTE:
  • If you're installing a new condenser, add refrigerant oil.
  • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
  • Be careful not to damage the radiator and condenser fins when installing the condenser.
  • Charge the system, and test its performance.
