Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front tire [RH].
Loosen the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

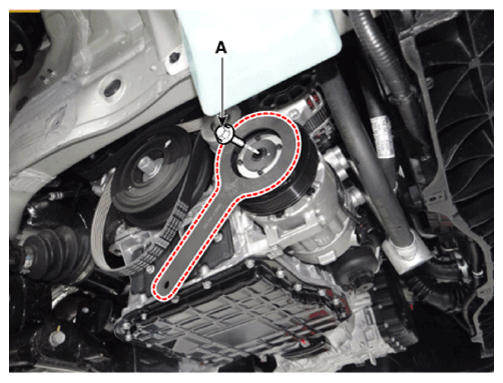

Remove the clutch bolt (A) while holding the pulley with a clutch bolt remover (09977-3R000).
Tightening torque:

15.0 - 21.0 N.m (1.53 - 2.14 kgf.m, 11.1 - 15.5 lb - ft)

Courtesy of HYUNDAI MOTOR AMERICA

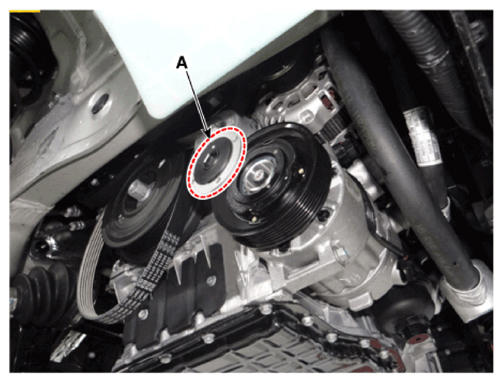

Loosen the limiter bolts and then remove the limiter & hub assembly.

Courtesy of HYUNDAI MOTOR AMERICA

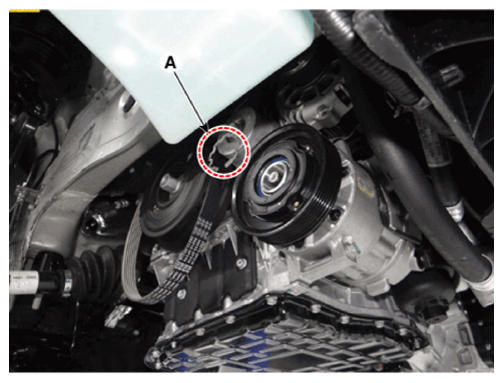

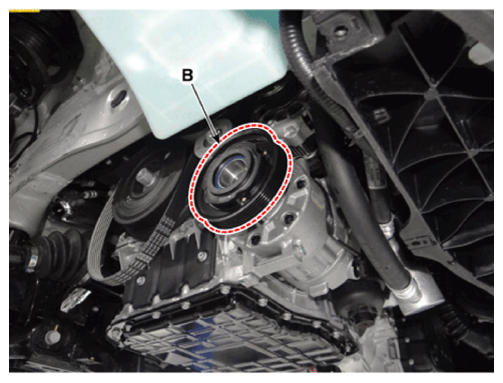

Remove the pulley (B) after removing the snap ring (A) with a snap ring plier.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the pulley and compressor during disassembly/reassembly.
- Once the snap ring is removed, replace it with a new one.
Reassemble in the reverse order of disassembly.

NOTE:

Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
Install a new snap ring, and make sure they are fully seated in the groove.
Make sure that the pulley turns smoothly after reassembly.
