Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

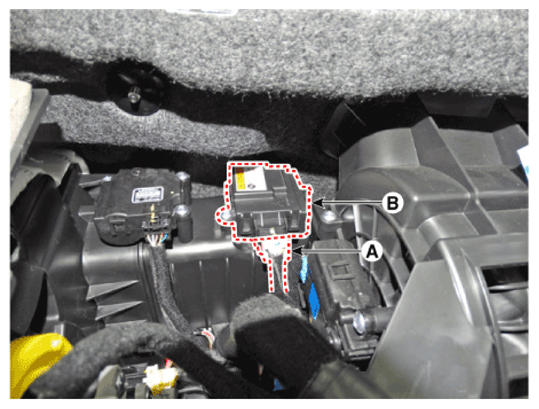

  3. Disconnect the connector (A).
  4. Loosen the mounting screw and then remove the cluster ionizer (B).
    G14233895Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
