Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover [RH].

    (Refer to Body - "CRASH PAD UNDER COVER ")

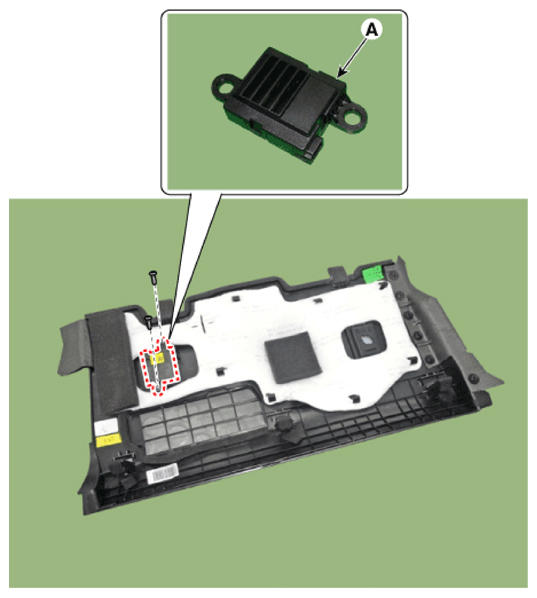

  3. Remove the air CO2 sensor (A) after loosening the mounting screws.
    G14233892Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.
