Repair Procedures: Replacement
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

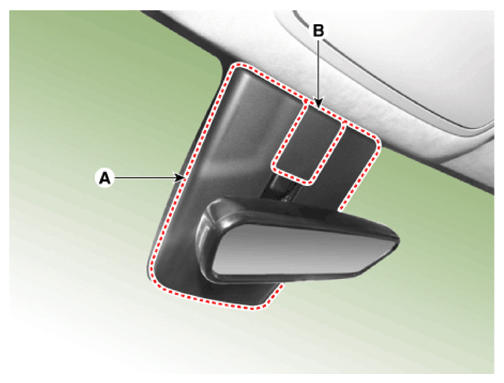

- Remove the mirror wiring cover (A) and auto defogging sensor cover (B).

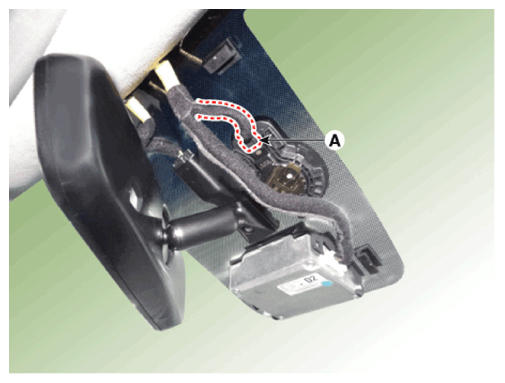

- Disconnect the auto defogging sensor connector (A).

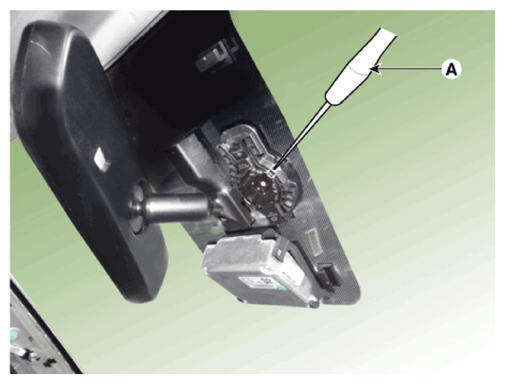

- Be careful not to damage the cover latch by applying excessive force. To remove the bracket, pull the holes of the bracket outside using a small flat-head screwdriver (A).
- To install, reverse the removal procedure.
