Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the outside rear view mirror [LH].

    (Refer to Body (Interior and Exterior) - "OUTSIDE REAR VIEW MIRROR ")

  3. Remove the mirror [LH].

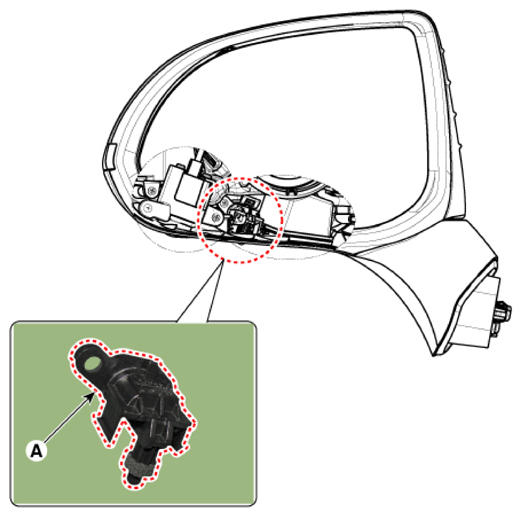

  4. Remove the ambient temperature sensor (A) after loosening the mounting screw.
    G14233877Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
