Repair Procedures: Inspection
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Check the components for damage or deformation.
- Compress and extend the piston rod and check that there is no abnormal resistance or unusual sound during operation.NOTE:

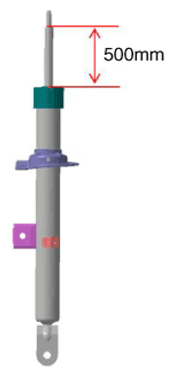

- When inspecting the 2WD (HPD/ECS) shock absorber, do not compress the piston rod less than 500 mm (19.7 in).
If that, could occur leak the oil or gas.
- When inspecting the 2WD (HPD/ECS) shock absorber, do not compress the piston rod less than 500 mm (19.7 in).
