Components And Components Location: Components

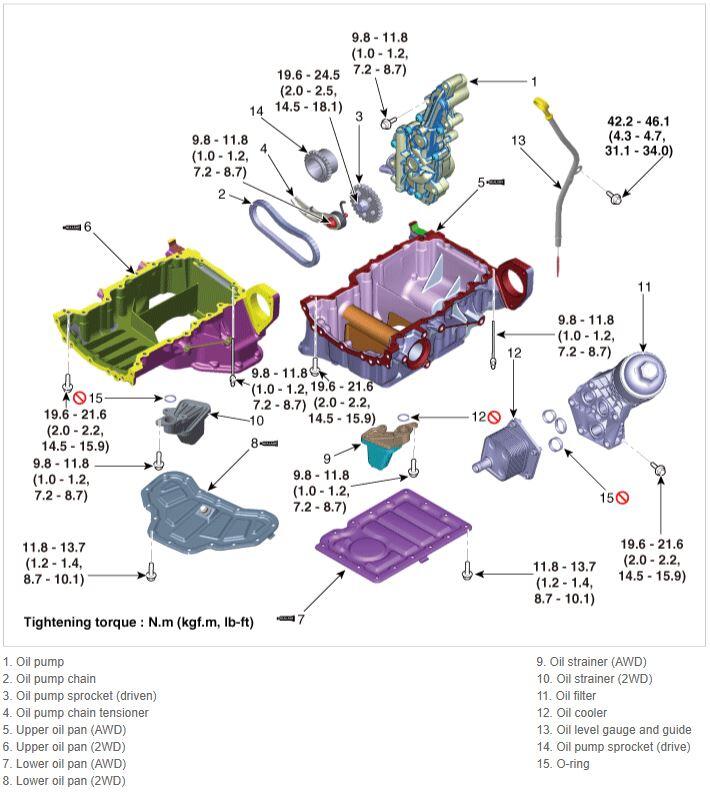

Fig 1: Engine Lubrication System Components Location With Torque Specifications

G15555864

Courtesy of HYUNDAI MOTOR AMERICA
