Components And Components Location: Components

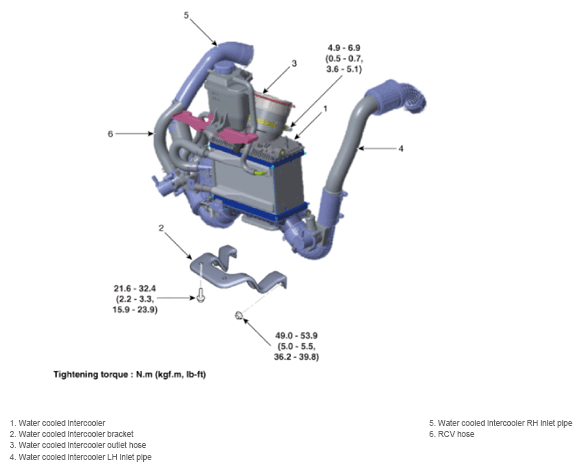

Fig 1: Water Cooled Intercooler Components Location With Torque Specification

G15555939

Courtesy of HYUNDAI MOTOR AMERICA
