Components And Components Location: Components

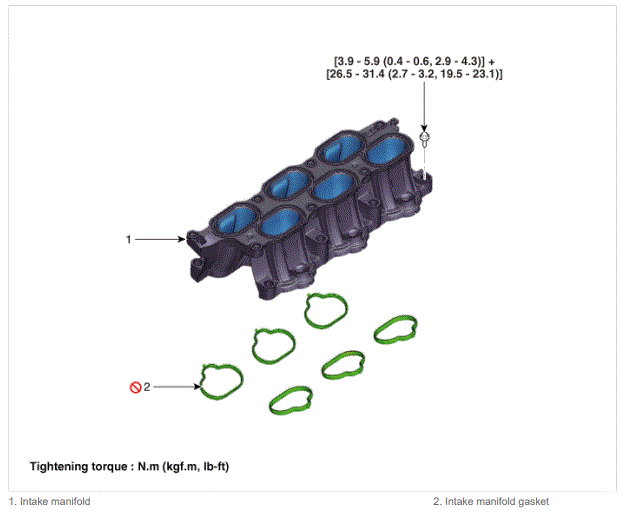

Fig 1: Intake Manifold Components Location With Torque Specification

G15555952

Courtesy of HYUNDAI MOTOR AMERICA
