Diagnostic Procedure Using a Diagnostic Instrument

The following information describes how to diagnose faults using a diagnostic instrument.

1. Connect the diagnostic instrument to the self-diagnostic connector (16-pin) beneath the crash pad on the side of driver's seat, and then turn on the ignition to activate the diagnostic instrument.

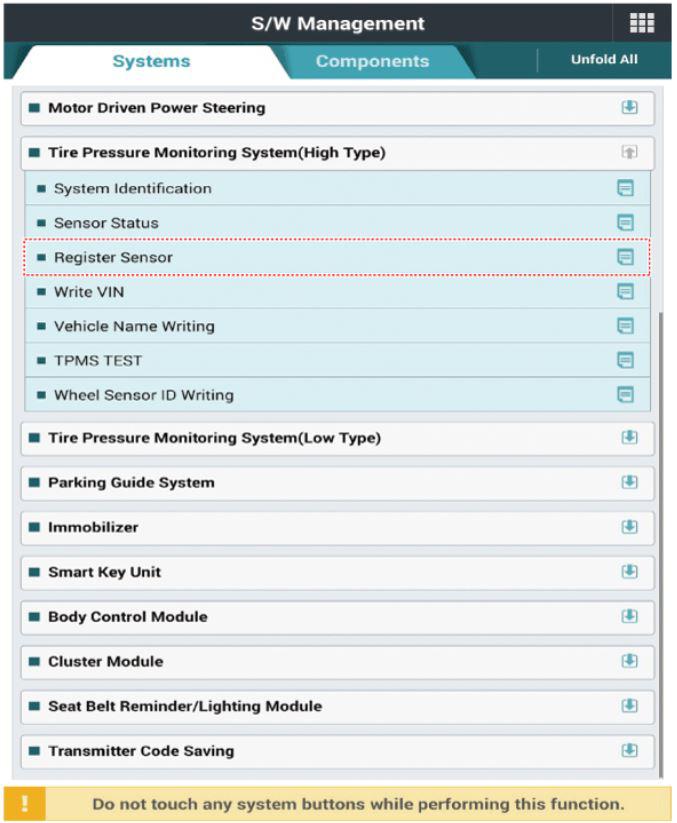

2. In the diagnostic tool Vehicle Type Selection menu, select "Vehicle Type" and "TPMS" System, and then opt for "OK."

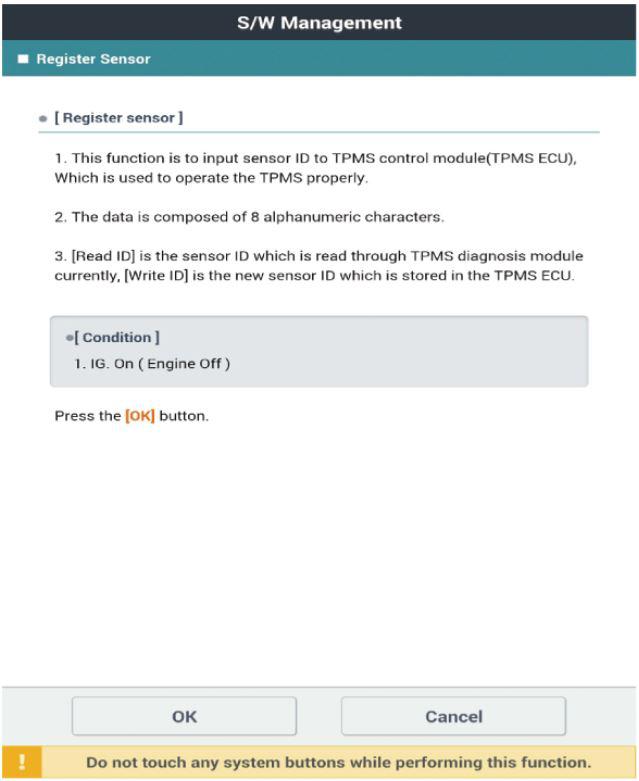

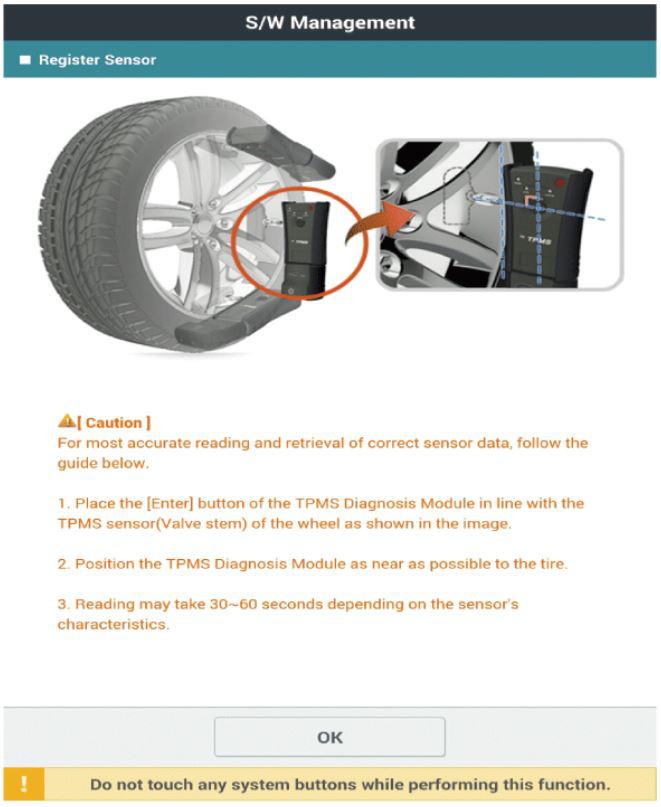

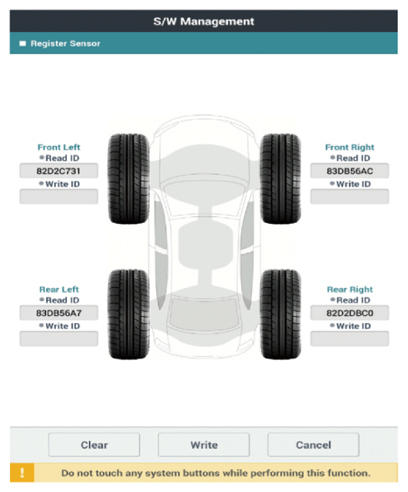

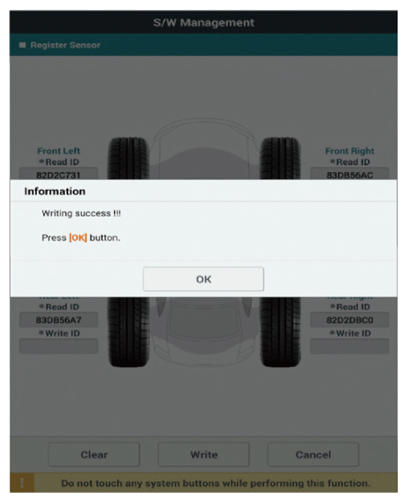

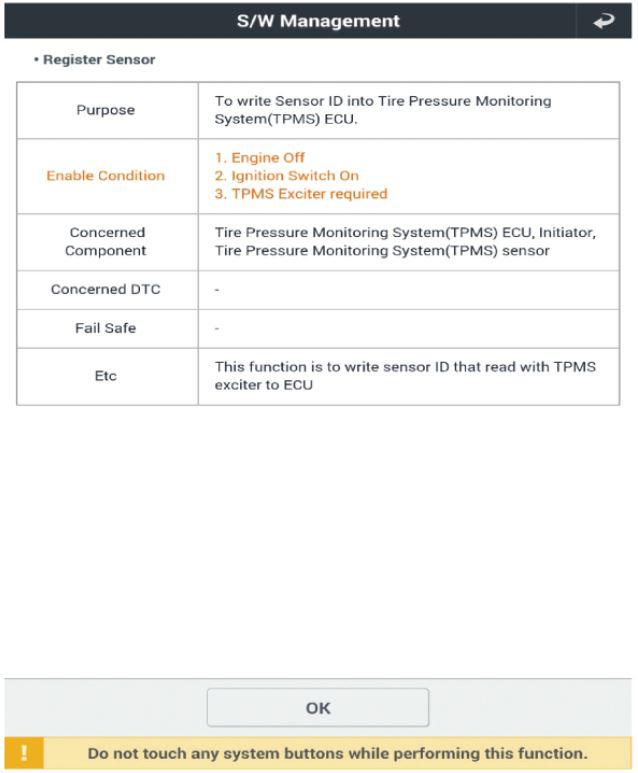

   [Register Sensor Method]

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

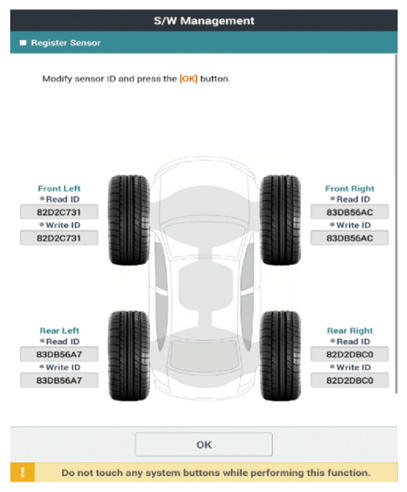

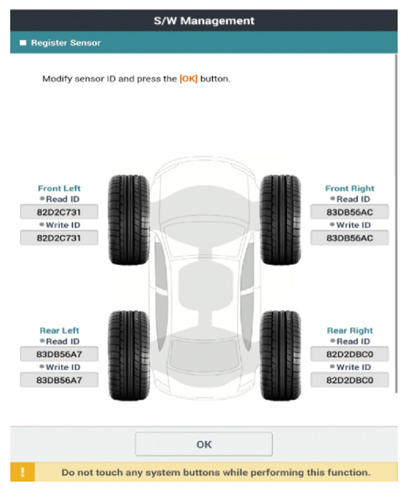

   • Check that Write ID and Read ID are the match.
   • After successfully registering the sensor, perform "Sensor Wireless Information" to confirm that the sensor operates properly.

   Courtesy of HYUNDAI MOTOR AMERICA

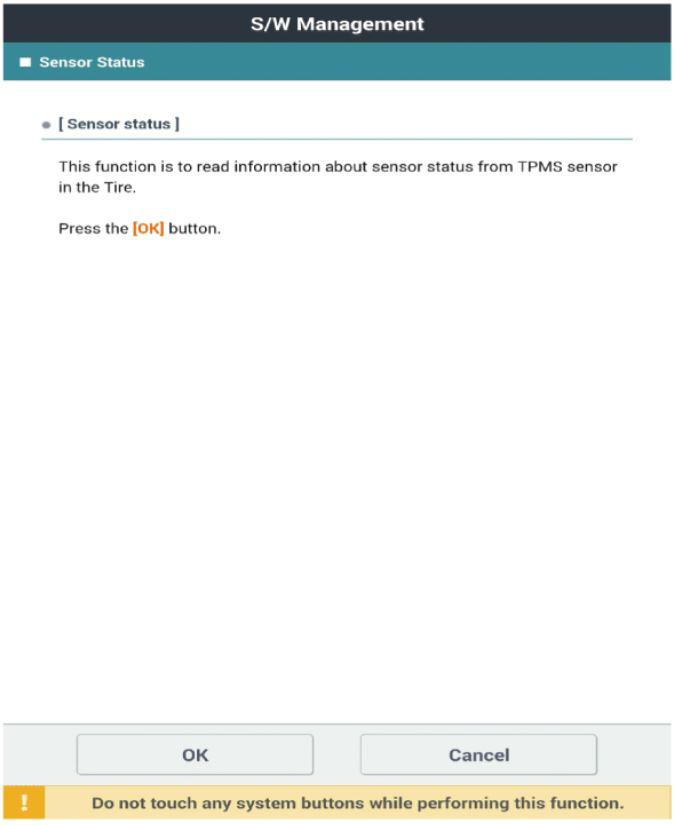

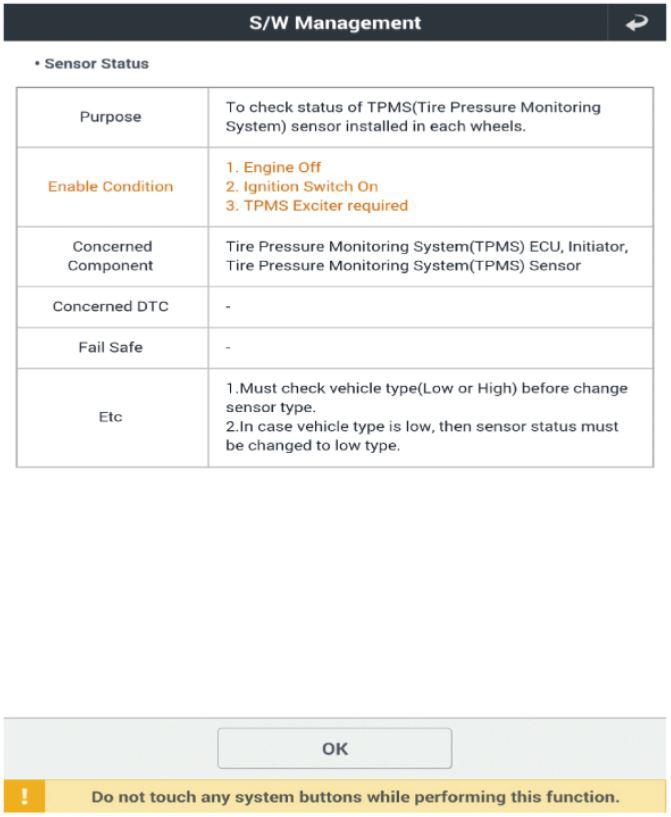

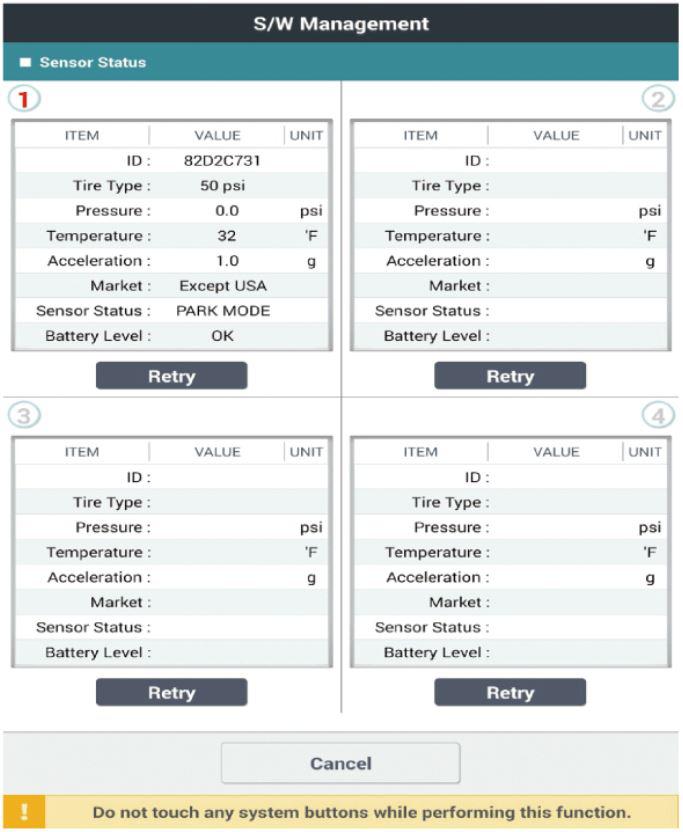

   [Sensor Status Method]

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Each entry must be checked for normal operation of each sensor.
   • After replacing the tires or sensors, check for proper operation of sensor after sensor registration process.

   Courtesy of HYUNDAI MOTOR AMERICA
