Repair Procedures: Removal
- Disconnect the negative (-) battery cable.
- Remove the glove box housing.
(Refer to Body - "GLOVE BOX ")

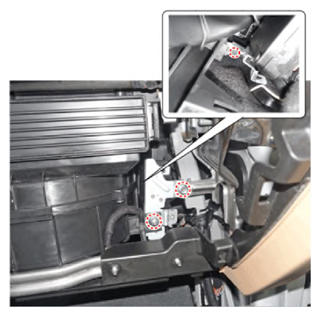

- Loosen the IBU mounting bolt and nuts.
- Loosen the mounting nut and bolt on the front of the IBU unit and remove the screw mounted next to the blower unit.

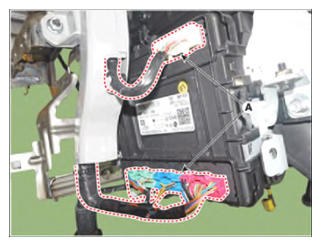

- Disconnect the IBU connector (A).
