Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Loosen the wheel bolts slightly.
Raise the vehicle, and make sure it is securely supported.

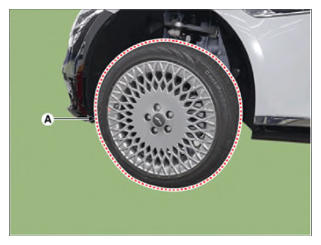

Remove the front wheel and tire (A) from front hub.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

NOTE:

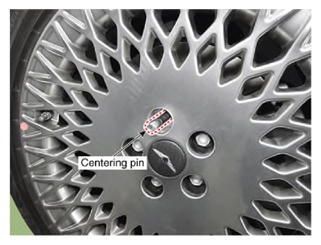

Safely remove the wheel and tire (A) using the centering pin included in the luggage tray.

Courtesy of HYUNDAI MOTOR AMERICA

Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of HYUNDAI MOTOR AMERICA

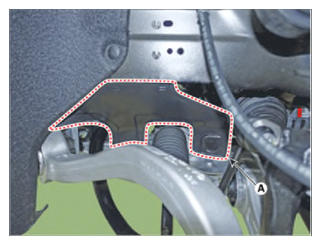

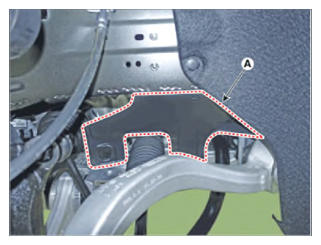

Remove the side cover (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

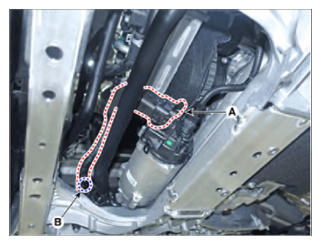

Disconnect the R-MDPS connector (A) and then removing the wiring clip (B).

Courtesy of HYUNDAI MOTOR AMERICA

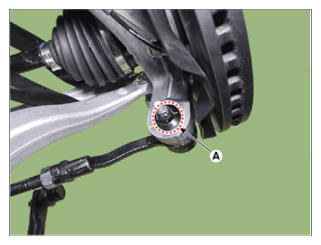

Remove the split pin and then loosen the nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

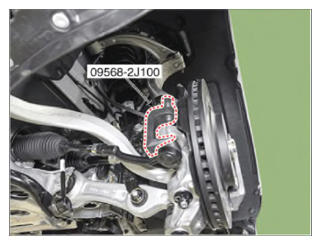

Remove the tie rod end ball joint (A) by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

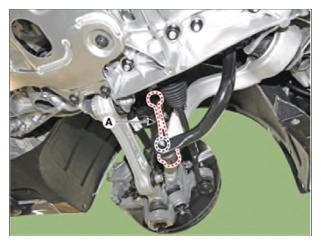

Remove the stabilizer bar link (A) after loosening the nut.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
NOTE:
- When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer link boots.
Courtesy of HYUNDAI MOTOR AMERICA

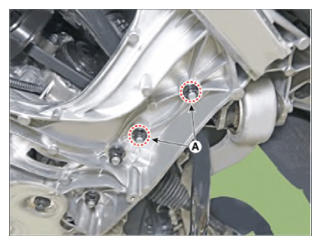

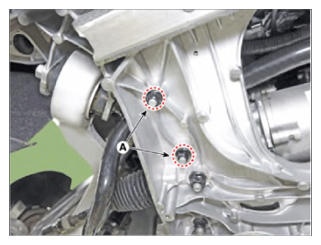

Loosen the bolt and nut (A) and then remove the stabilizer bar from the front cross member.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
