Repair Procedures: Replacement
NOTE:
- When removing the fender, wrap protective tape around a screwdriver or remover not to damage components
Information
- Put on gloves to prevent hand injuries.
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
- Remove the front wheel.
(Refer to Suspension System - "WHEEL ")

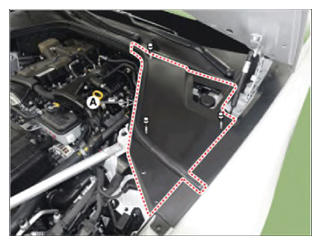

- Remove the engine room side cover (A).

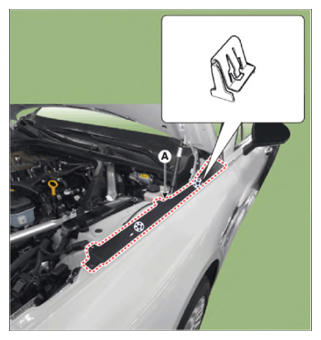

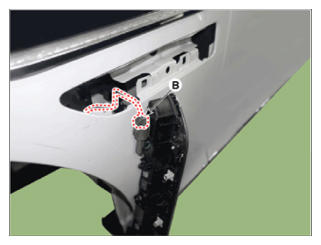

- Separate the mounting clips, down the hook (B) and then remove the fender side cover (A).

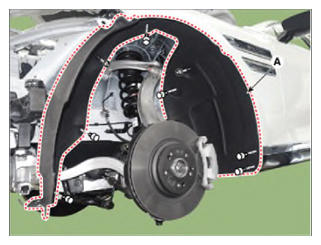

- Loosen the front wheel guard mounting screws and pin-type retainers.
- Remove the side sill molding.
(Refer to Body Side Molding - "SIDE SILL MOLDING ")

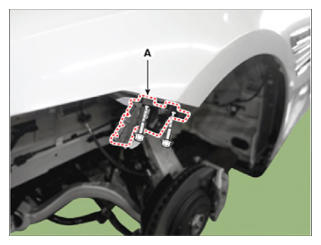

- Remove the front bumper side mounting bracket (A) after loosening the screw and bolt.

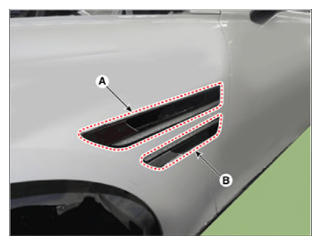

- Remove the fender lamp (A), (B) using screw driver or remover

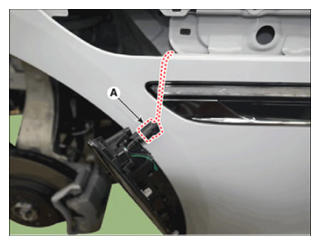

- Remove the fender lamp connector (A), (B).

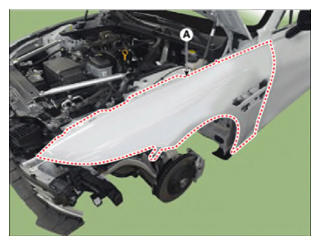

- Remove the fender assembly (A) after loosening the nut and bolts.
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
