Home >> Genesis >> 2021 >> G70 3.3T, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 3.3L >> Intake Manifold >> Components And Components Location >> Components

Components And Components Location: Components

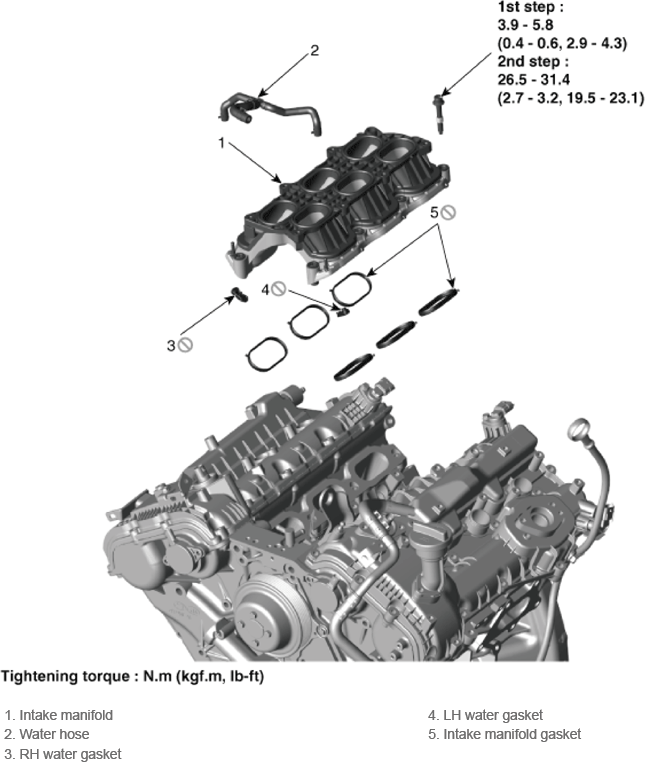

Fig 1: Intake Manifold Components Location With Torque Specification

G14178968

Courtesy of HYUNDAI MOTOR AMERICA
