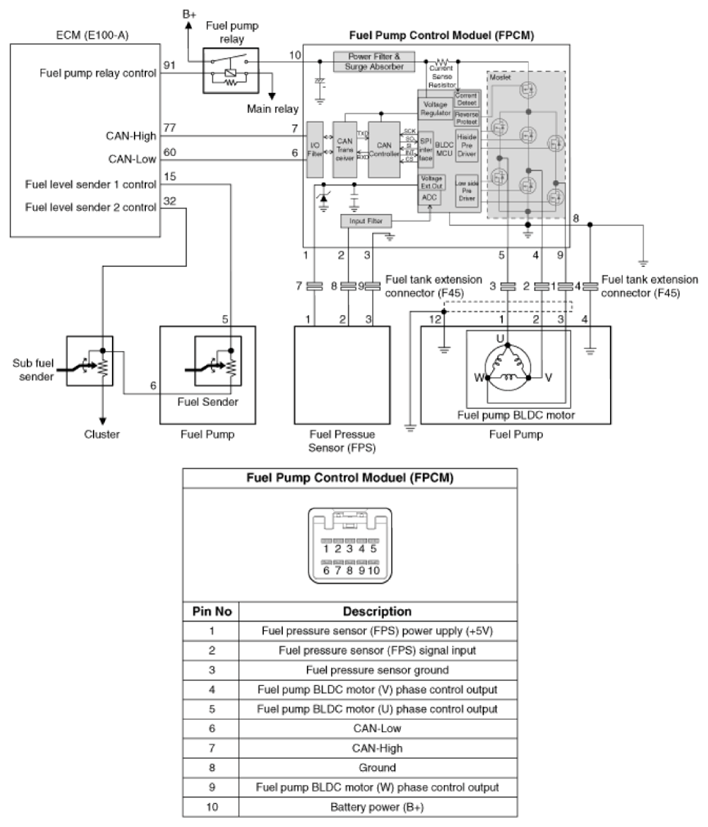

Home >> Genesis >> 2020 >> G90 3.3T Premium, AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 3.3L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
