Components And Components Location: Components

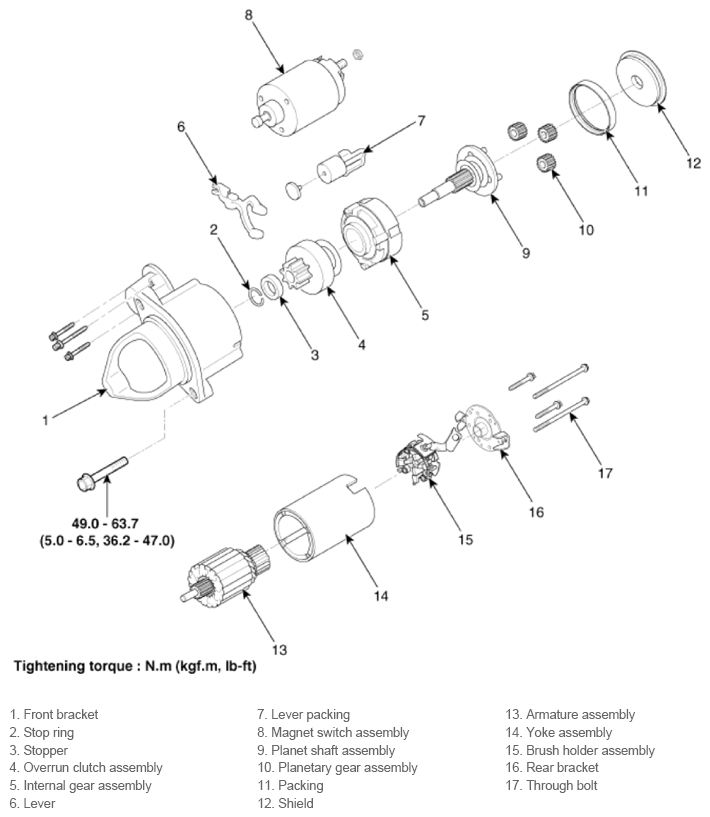

Fig 1: Starter Components Location With Torque Specification

G13539146

Courtesy of HYUNDAI MOTOR AMERICA
