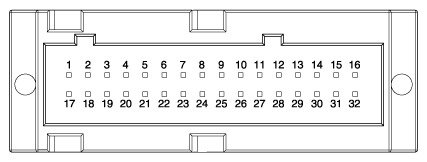

Terminal Function
| Pin No. | Description |
|---|---|
| 1 | Battery (+) |
| 2 | - |
| 3 | ECU Ground |
| 4 | ECU Ground |
| 5 | Wheel Sensor Ground |
| 6 | C-CAN HIGH |
| 7 | - |
| 8 | - |
| 9 | C-CAN LOW |
| 10 | 1 |
| 11 | - |
| 12 | - |
| 13 | - |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | Battery (+) |
| 18 | Solenoid RR (-) |
| 19 | Solenoid RR (+) |
| 20 | Solenoid RL (+) |
| 21 | Solenoid RL (-) |
| 22 | IGNITION Switch |
| 23 | Wheel Sensor Power |
| 24 | Wheel Sensor Ground |
| 25 | - |
| 26 | Wheel G-Sensor Signal FL |
| 27 | Wheel G-Sensor Signal FR |
| 28 | Wheel Sensor Power |
| 29 | Solenoid FL (-) |
| 30 | Solenoid FL (+) |
| 31 | Solenoid FR (+) |
| 32 | Solenoid FR (-) |
