Components And Components Location: Components

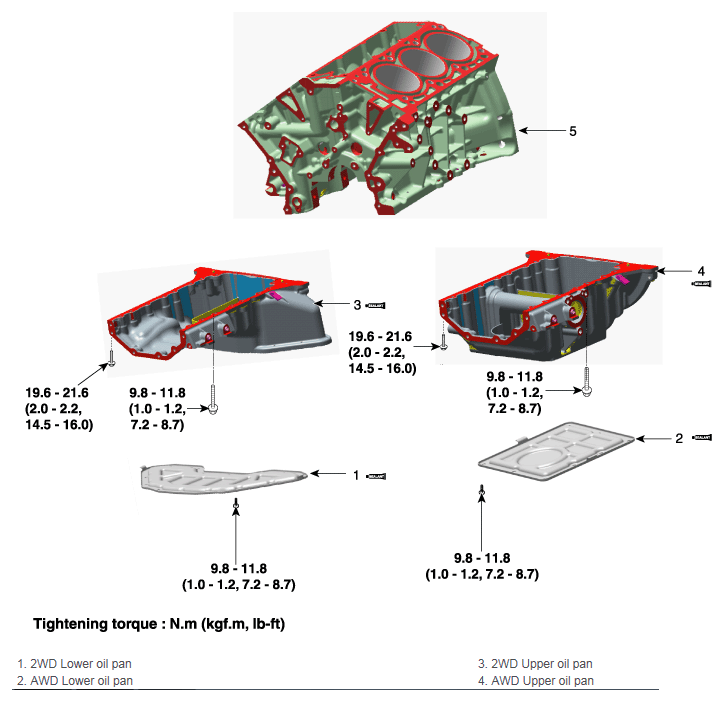

Fig 1: Exploded View Of Oil Pan Components With Torque Specification

G12662912

Courtesy of HYUNDAI MOTOR AMERICA
