Home >> Genesis >> 2019 >> G70 2.0T Advanced, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Rear Power Window Switch >> [Manual]

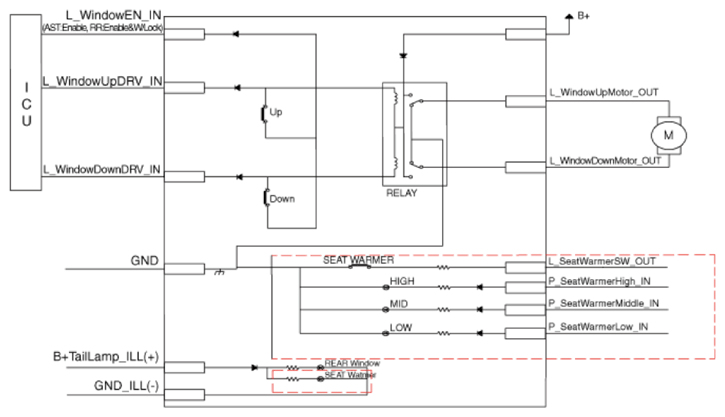

Rear Power Window Switch: [Manual]

G13542044Courtesy of HYUNDAI MOTOR AMERICA
