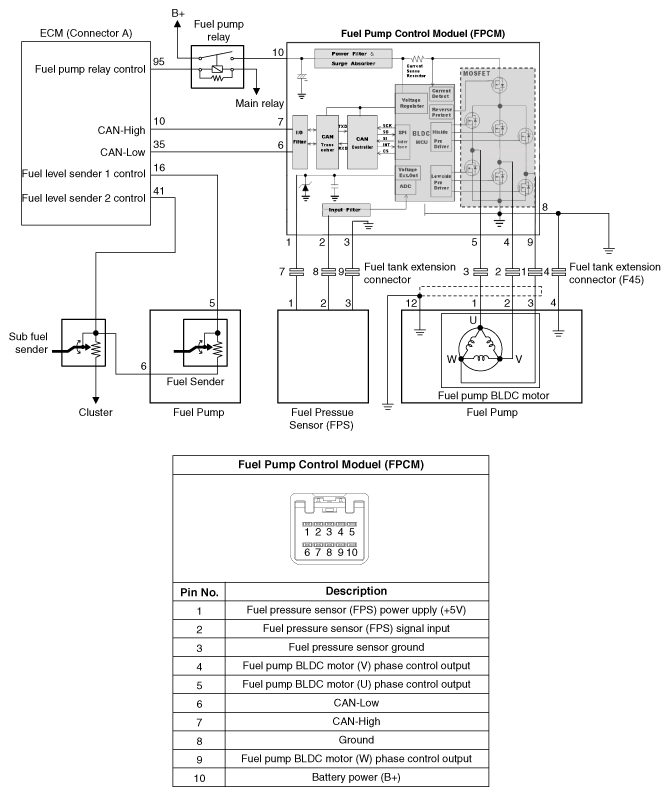

Home >> Genesis >> 2018 >> G80 5.0 Ultimate, AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 5.0L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
