Components And Components Location: Components

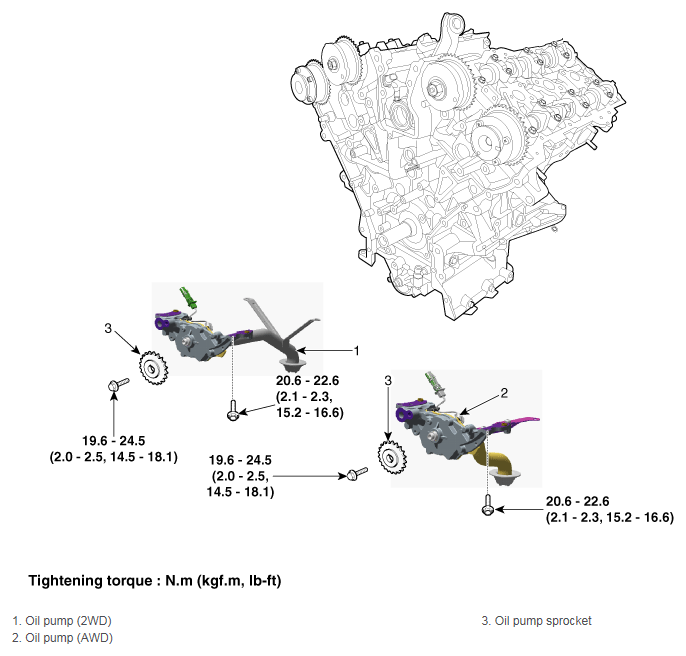

Fig 1: Oil Pump Components With Torque Specification

G12662931

Courtesy of HYUNDAI MOTOR AMERICA
