Circuit Diagram

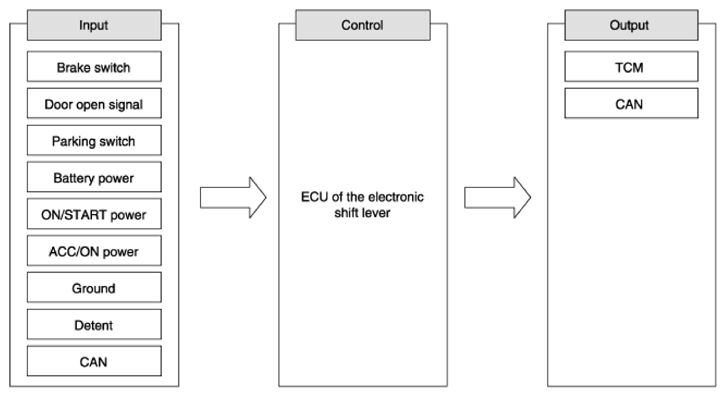

Fig 1: ECU Electronic Shifter Lever - Circuit Diagram (1 Of 2)
G11404854Courtesy of HYUNDAI MOTOR AMERICA

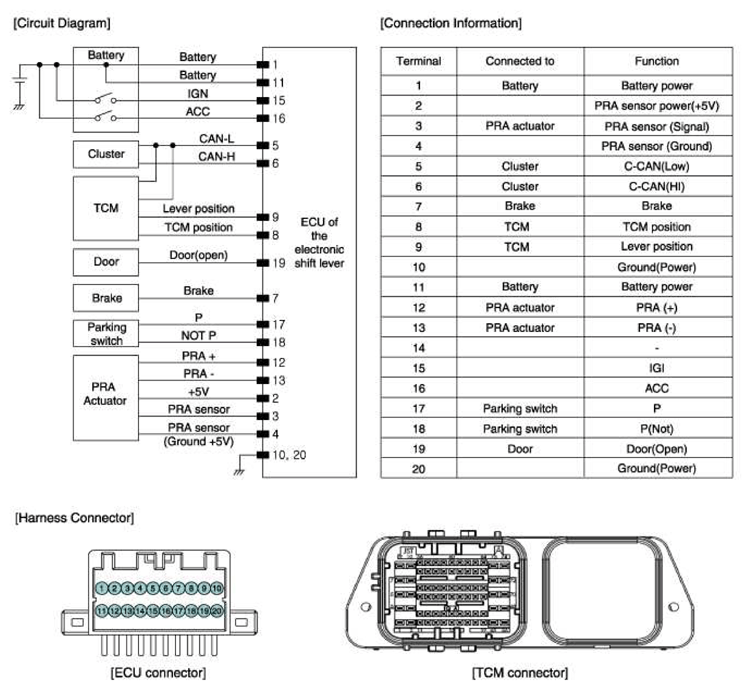

Fig 2: ECU Electronic Shifter Lever - Circuit Diagram (2 Of 2)
G11404855Courtesy of HYUNDAI MOTOR AMERICA
