Fuel Delivery System - 5.0L: Troubleshooting

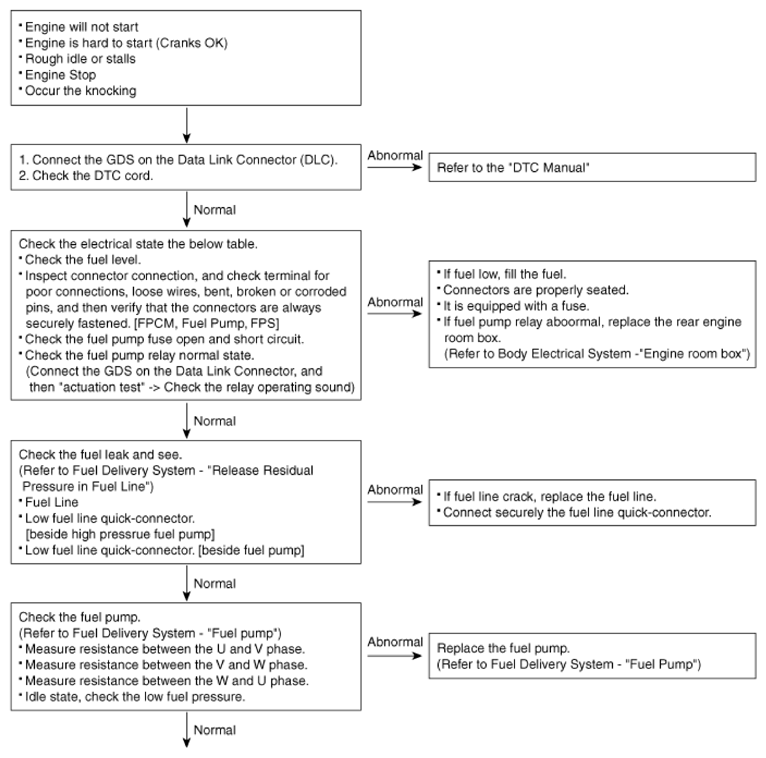

Fig 1: Fuel Delivery System - Troubleshooting Flowchart (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

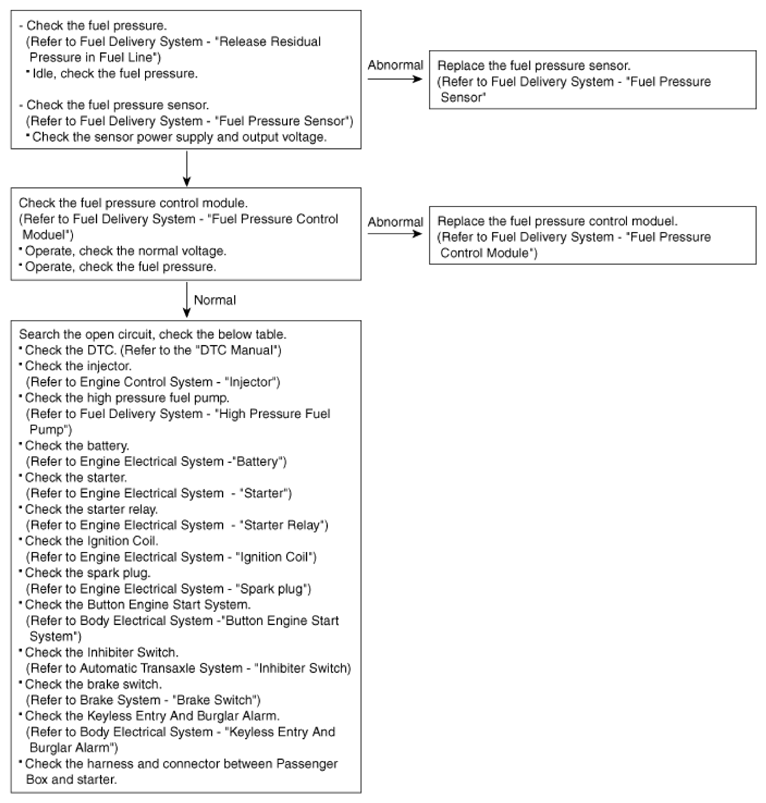

Fig 2: Fuel Delivery System - Troubleshooting Flowchart (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

• Check the fuel pressure after replacing parts.

  (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
