Repair Procedure: Removal

  1. Turn ignition switch OFF and remove the negative (-) battery cable mounting nut (A).
  2. Disconnect the battery sensor connector (B).
  3. Remove the battery sensor cable after removing the bolts (C).

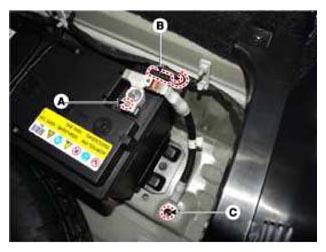

Fig 1: Battery Sensor Connector And Battery Cable Mounting Nuts Location
G11412011Courtesy of HYUNDAI MOTOR AMERICA
