Components and Components Location: Components

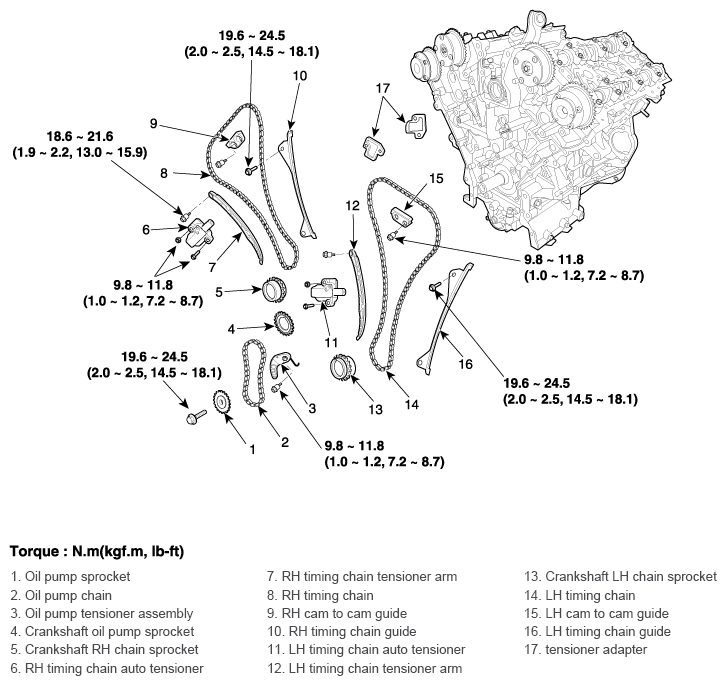

Fig 1: Exploded View Of Timing Chain Components With Torque Specifications

G11354375

Courtesy of HYUNDAI MOTOR AMERICA
