Fastener Specifications

GM5782436Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Transmission Case and Associated Parts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Output Shaft Retaining Ring - Large [2x] Yes - - Front Electric Drive Transmission Module Overhaul
2 Output Shaft Seal [2x] Yes - -
3 Output Shaft Retaining Ring - Small [2x] Yes - -
4 Automatic Transmission Case Bolt - M8 x 67.9 [21x] Yes - Automatic Transmission Case Bolt Sequence
5 Manual Shift Shaft Motor Seal Yes - -
6 Manual Shift Shaft Motor Bolt - M6 x 35.65 [3x] - - 9 N.m (80 lb in)
7 Drive Motor Housing Seal [2x] Yes - -
8 Automatic Transmission Fluid Cooling Exchanger Seal [2x] Yes - -
9 Automatic Transmission Fluid Cooling Exchanger Bolt - M6 x 30.65 [3x] - - 15 N.m (11 lb ft)
GM5782640Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Transmission Case Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Wiring Harness Bolt - M6 x 23.15 - - 15 N.m (11 lb ft) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Housing Seal Yes - -
3 Automatic Transmission Fluid Level Hole Plug - - 35 N.m (26 lb ft)
4 Front Wheel Drive Shaft Oil Seal Yes - -
GM5782886Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Transmission Case Park Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Manual Shift Shaft Seal Yes - - Front Electric Drive Transmission Module Overhaul
2 Automatic Transmission Case Cover Bolt - M5 x 22.65 [2x] - - 8.5 N.m (75 lb in)
3 Park Pawl Actuator Guide Seal [2x] Yes - -
4 Manual Shift Detent Spring Bolt - M6 x 25.65 - - 15 N.m (11 lb ft)
5 Parking Pawl Shaft Retainer Bracket Bolt - M6 x 23.15 [2x] - - 15 N.m (11 lb ft)

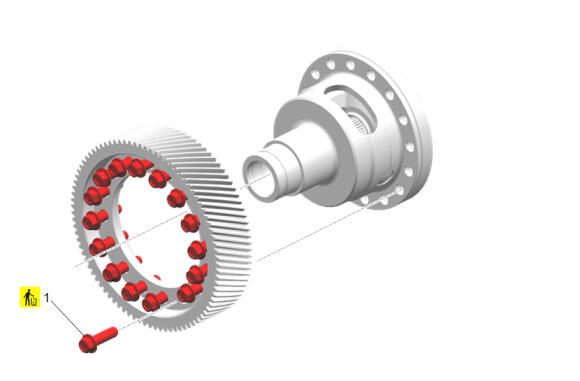

GM6125638Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Transmission Differential Carrier Assembly

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Differential Final Drive Ring Gear Bolt - M12 x 40 [16x] Yes - Automatic Transmission Differential Final Drive Ring Gear Bolt Sequence  Front Electric Drive Transmission Module Overhaul

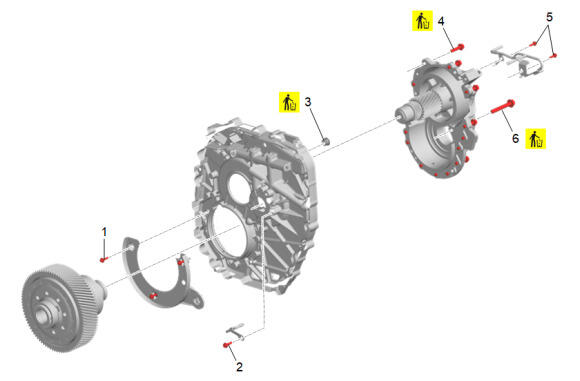

GM6125639Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Center Support Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Differential Carrier Baffle Bolt - M6 x 24.1 [3x] - - 8.5 N.m (75 lb in) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Rotor Cooling Tube Bolt - M6 x 23.15 - - 15 N.m (11 lb ft)
3 Drive Motor Housing Seal Yes - -
4 Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt - M8 x 35.4 [14x] Yes - Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt Sequence
5 Automatic Transmission Case Cover Bolt - M5 x 17.65 [2x] - - 8.5 N.m (75 lb in)
6 Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt - M10 x 70.6 Yes - First Pass: 30 N.m (22 lb ft)
Final Pass: 94 degrees

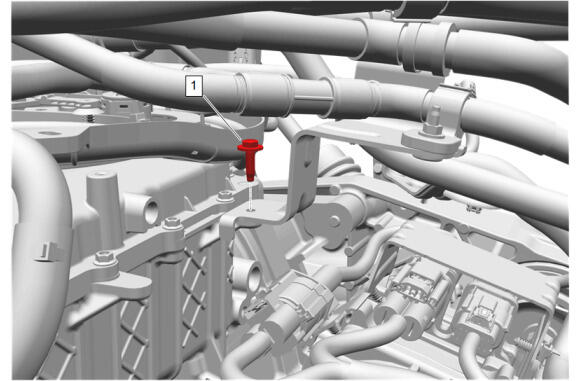

GM6579958Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Battery Coolant Cooler Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Control Module Coolant Pump Hose Clip Bolt - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Replacement
GM5782895Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Housing Components 1 of 2

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Inverter Module Cover Bolt - M5 x 22.65 [4x] - - 8.5 N.m (75 lb in) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Power Inverter Module Connector Bolt - M6 x 20.65 [3x] - - 9 N.m (80 lb in)
3 Drive Motor Power Inverter Module Bolt - M5 x 22.65 [16x] - - Drive Motor Power Inverter Module Bolt Sequence
4 Drive Motor Housing Plug - M12 x 16.25 [5x] - - 35 N.m (26 lb ft)
5 Drive Motor Housing Plug - M18 x 16.25 - - 40 N.m (30 lb ft)
6 Automatic Transmission Fluid Pump Motor Cover Seal [2x] Yes - -
7 Automatic Transmission Fluid Pump Motor Cover Seal - Large Yes - -
8 Automatic Transmission Fluid Pump Bolt - M6 x 38.65 [4x] - - 15 N.m (11 lb ft)
9 Front Wheel Drive Shaft Oil Seal Yes - -
10 Automatic Transmission Fluid Temperature Sensor - - 12 N.m (9 lb ft)
11 Transmission Fluid Drain Plug - M12 x 16.25 - - 35 N.m (26 lb ft)
12 Automatic Transmission Fluid Pressure Test Hole Plug - M12 x 16.25 - - 35 N.m (26 lb ft)
GM5782896Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Housing Components 2 of 2

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Stator Bracket Bolt - M8 x 30.7 [4x] - - 36 N.m (27 lb ft) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Stator Bolt - M10 x 156.5 [4x] - - 58 N.m (43 lb ft)
3 Drive Motor Power Inverter Module Connector Bolt - Stator - M6 x 20.65 [3x] - - 9 N.m (80 lb in)
4 Drive Motor Power Inverter Module Connector Bolt - M6 x 20.65 [3x] - - 9 N.m (80 lb in)
5 Drive Motor Power Inverter Module Connector Bolt - M5 x 17.6 [5x] - - 4.7 N.m (42 lb in)
6 Drive Motor Position Sensor Bolt - M5 x 17.6 [3x] - - 4.7 N.m (42 lb in)
7 Drive Motor Power Inverter Module Connector [3x] Yes - -
8 Transmission Fluid Drain Plug - M12 x 16.25 [4x] - - 35 N.m (26 lb ft)
9 Drive Motor Housing Plug - M22 x 16.25 - - 40 N.m (30 lb ft)
10 Drive Motor Rotor Bearing Bolt - M18 x 31.9 Yes Yes 100 N.m (74 lb ft)
11 Drive Motor Housing Cover Bolt - M6 x 25.65 [5x] - - Drive Motor Housing Cover Bolt Sequence
GM6420705Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Mount Bolts and Nuts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Mount Nut - - - Drive Motor Mount Replacement - Right Side
2 Drive Motor Mount Bolt - M12 x 110 Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Mount Replacement - Right Side
3 Drive Motor Mount Bolt - M12 x 110 Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Mount Replacement - Left Side
GM5904964Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Mount Bolts - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Mount Bolt - M12 x 60.90 [4x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Mount Replacement - Left Side
GM5904966Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Mount Bolts - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Mount Bolt - M12 x 60.90 [3x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Mount Replacement - Right Side
GM5904967Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Rear Mount Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bolt - M10 x 50.65 [4x] - - 58 N.m (43 lb ft) Drive Motor Rear Mount Replacement - Left Side
Drive Motor Rear Mount Replacement - Right Side
GM5904968Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Rear Mount Bolts - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bolt - M12 x 60.90 [3x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Rear Mount Replacement - Left Side
GM5904969Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Rear Mount Bolts - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bolt - M12 x 60.90 [3x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Rear Mount Replacement - Right Side
GM5905446Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Rear Mount Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bracket Bolt - M12 x 55.80 [6x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Rear Mount Bracket Replacement - Left Side
Drive Motor Rear Mount Bracket Replacement - Right Side

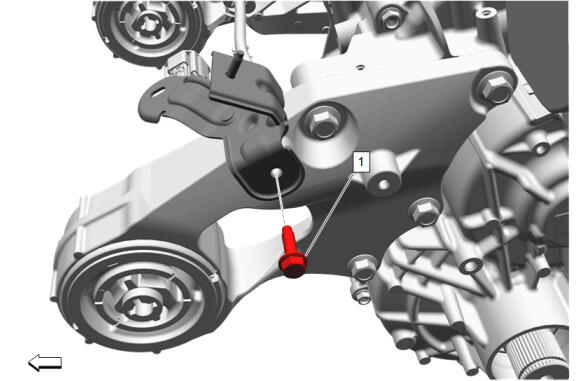

GM6584515Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Engine Wiring Harness Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Bolt - M8 x 30.7 - - 22 N.m (16 lb ft) Drive Motor Mount Replacement - Left Side
GM6083568Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Electric Drive Transmission Module Cooler Coolant Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Replacement
2 Heater Coolant Heater Bolt - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Replacement
