Fastener Specifications

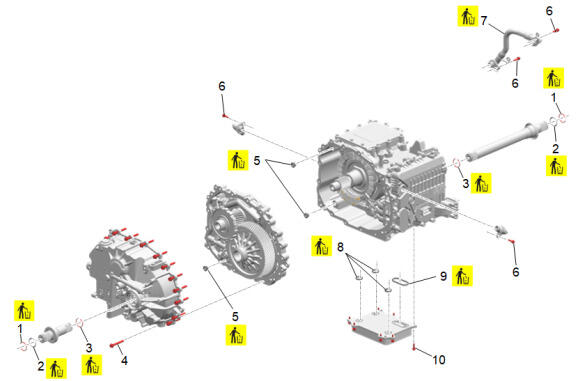

GM6125776Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Transmission Case and Associated Parts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Output Shaft Retaining Ring [4x] Yes - - Rear Electric Drive Transmission Module Overhaul
2 Output Shaft Seal [2x] Yes - -
3 Automatic Transmission Case Bolt - M8 x 62.9 [18x] - - Automatic Transmission Case Bolt Sequence
4 Drive Motor Housing Seal [3x] Yes - -
5 Transmission Fluid Cooler Pipe Bolt - M6 x 25.65 [4x] - - 9 N.m (80 lb in)
6 Transmission Fluid Cooler Pipe Yes - -
7 Automatic Transmission Fluid Cooling Exchanger Seal [3x] Yes - -
8 Automatic Transmission Fluid Cooling Exchanger Seal - Large Yes - -
9 Automatic Transmission Fluid Cooling Exchanger Bolt - M6 x 25.65 [7x] - - Automatic Transmission Fluid Cooling Exchanger Bolt Sequence

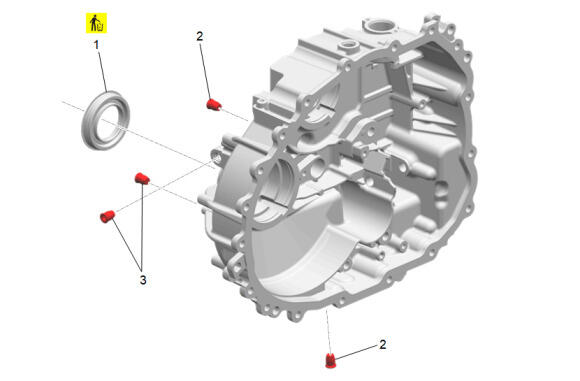

GM6125777Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Transmission Case Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Front Wheel Drive Shaft Oil Seal Yes - - Rear Electric Drive Transmission Module Overhaul
2 Automatic Transmission Fluid Level Hole Plug - M12 x 16.25 [2x] - - 25 N.m (18 lb ft)
3 Transmission Fluid Drain Plug - M12 x 16.25 [2x] - - 25 N.m (18 lb ft)
GM5926395Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Center Support Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pump Drive Gear Bolt - M6 x 33 - - 9 N.m (80 lb in) Rear Electric Drive Transmission Module Overhaul
2 Drive Motor Rotor Cooling Tube Bolt - M6 x 25.65 - - 9 N.m (80 lb in)
3 Transmission Fluid Drain Plug - M12 x 16.25 [2x] - - 25 N.m (18 lb ft)
4 Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt - M10 x 40 [5x] Yes - Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt Sequence
5 Automatic Transmission Fluid Pump Bolt - M6 x 60.6 [3x] - - 9 N.m (80 lb in)
6 Drive Motor Housing Seal Yes - -
GM5926397Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Housing Components 1 of 2

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Stator Bolt - M10 x 156.5 [4x] - - 58 N.m (43 lb ft) Rear Electric Drive Transmission Module Overhaul
2 Drive Motor Stator Bracket Bolt - M8 x 31.7 [4x] - - 35 N.m (26 lb ft)
3 Drive Motor Power Inverter Module Connector Bolt - Stator - M5 x 23.9 [3x] - - 8.5 N.m (75 lb in)
4 Drive Motor Position Sensor Bolt - M5 x 17.6 [3x] - - 4.7 N.m (42 lb in)
5 Drive Motor Housing Plug - M12 x 16.25 - - 25 N.m (18 lb ft)
6 Drive Motor Rotor Bearing Bolt - M18 x 31.9 Yes Yes 100 N.m (74 lb ft)
7 Drive Motor Housing Cover Bolt - M6 x 25.65 [6x] - - Drive Motor Housing Cover Bolt Sequence (x6)
8 Front Wheel Drive Shaft Oil Seal Yes - -
GM5926398Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Housing Components 2 of 2

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Housing Cover Bolt - M6 x 25.65 [11x] - - Drive Motor Housing Cover Bolt Sequence (x11)  Rear Electric Drive Transmission Module Overhaul
2 Drive Motor Housing Plug - M12 x 16.25 [2x] - - 25 N.m (18 lb ft)
3 Automatic Transmission Fluid Pressure Test Hole Plug - M12 x 16.25 - - 25 N.m (18 lb ft)
4 Automatic Transmission Fluid Temperature Sensor - - 9 N.m (80 lb in)
5 Drive Motor Power Inverter Module Bolt - M6 x 25.65 [16x] - - Drive Motor Power Inverter Module Bolt Sequence
6 Drive Motor Power Inverter Module Connector [3x] Yes - -
7 Drive Motor Power Inverter Module Connector Bolt - M6 x 25.65 [3x] - - 9 N.m (80 lb in)
8 Drive Motor Power Inverter Module Connector Terminal Bolt - M6 x 25.65 [3x] - - 9 N.m (80 lb in)
9 Drive Motor Power Inverter Module Cover Bolt - M5 x 22.65 [4x] - - 8.5 N.m (75 lb in)

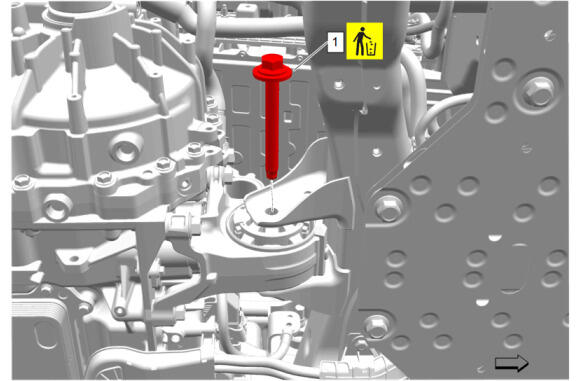

GM6331160Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Drive Motor Mount Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Drive Motor Mount Bolt - M14 x 125.43 Yes - First Pass: 160 N.m (118 lb ft)
Final Pass: 90- 105 degrees		 Rear Drive Motor Mount Replacement

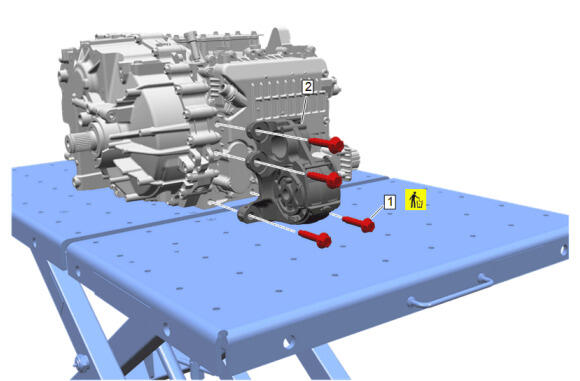

GM6331380Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Mount Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Drive Motor Mount Bolt - M12 x 60.90 [4x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Rear Drive Motor Mount Replacement

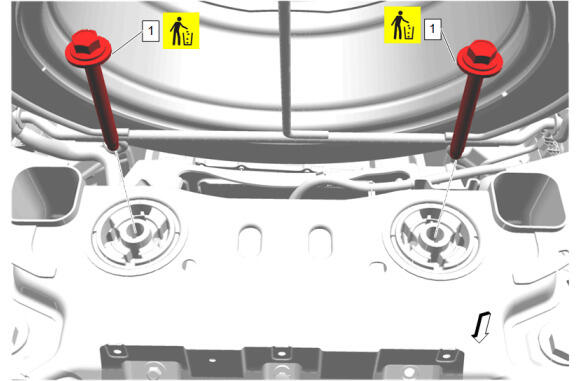

GM6329448Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drive Motor Mount Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Drive Motor Rear Mount Bolt - M14 x 125.43 [2x] Yes - First Pass: 160 N.m (118 lb ft)
Final Pass: 90- 105 degrees		 Rear Electric Drive Transmission Module Replacement
